Haven's™ Grip for Wire Rope, 1.9 cm

1625-20

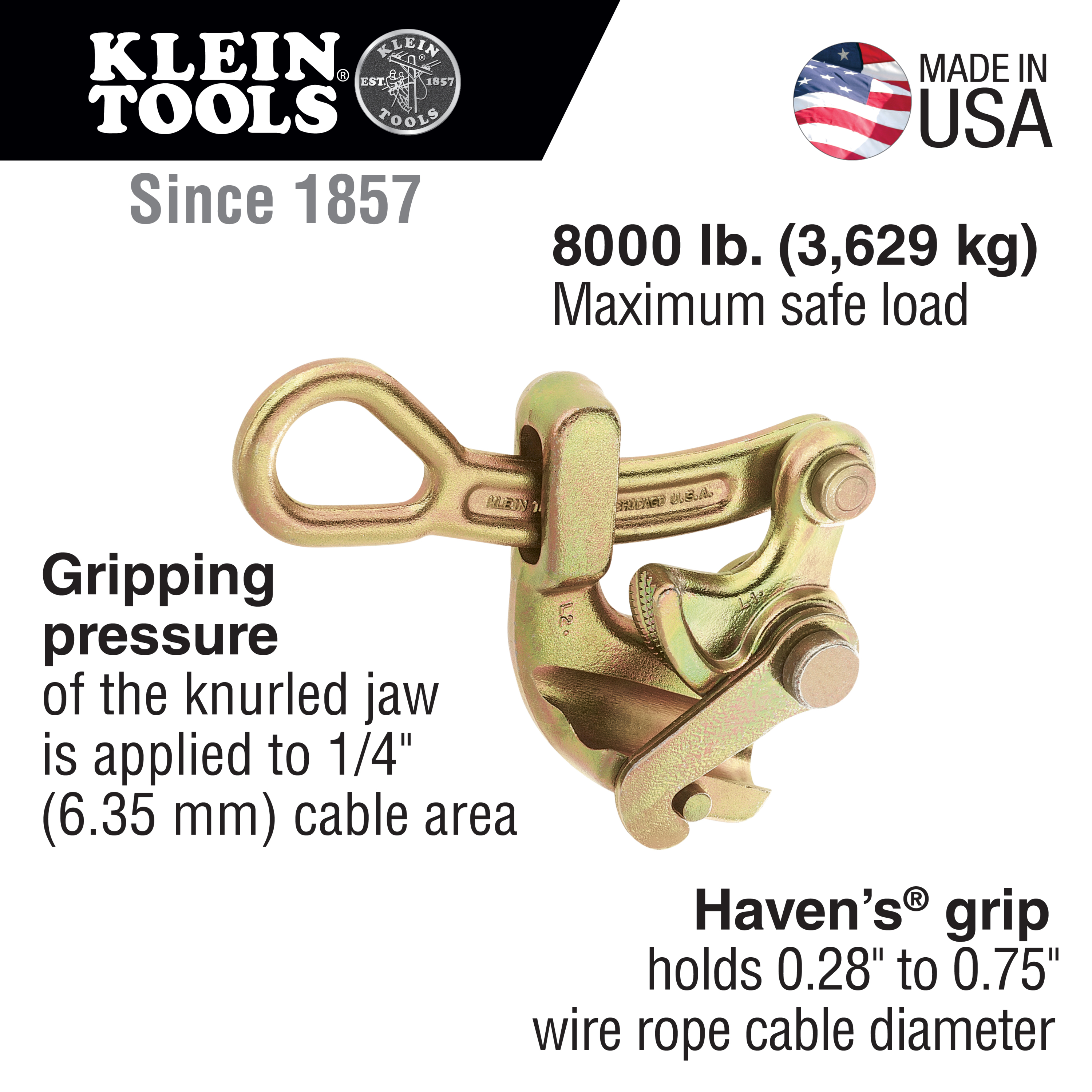

  • Designed for use when a light, compact grip is desired and where conductor damage is not a factor
  • Gripping pressure of the knurled jaw is applied to 1/4'' (6.35 mm) cable area
  • Max Safe Load of 8000 lbs (3629 kg)
  • Manufactured from drop-forged, heat-treated steel for excellent durability
  • Made in the USA
Videos
Images
High-Res JPG 1625-20_photo.jpg

The Klein Tools 1625 Series Wire Rope Haven's™ Grips are designed for use when a light, compact grip is desired and where cable deformation is not a factor. This grip also comes with a swing latch to help hold cable in the jaw. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.

Specifications
Type:
Haven's Grip
Cable Type:
Wire Rope
Cable Diameter:
0.28'' to 0.75'' (7.11 to 19.05 mm)
Hot Latch:
N
Swing Latch:
Y
Spring:
N
Locking Handle:
N
Jaw Type:
Aggressive
Maximum Safe Load:
8000 lb (3629 kg)
Weight:
3.5 lb (1.6 kg)
UPC:
092644472206
Additional Information
Feature Icon klein/wf_grips-aggressive-jaw.jpg
Warnings
  • Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
  • When used on/near live lines, ground, insulate or isolate grip before pulling.
  • Do not exceed rated capacity.
  • Always match proper size and type of grip to application.
  • Grips are to be used for temporary installation, not for permanent anchorage.
