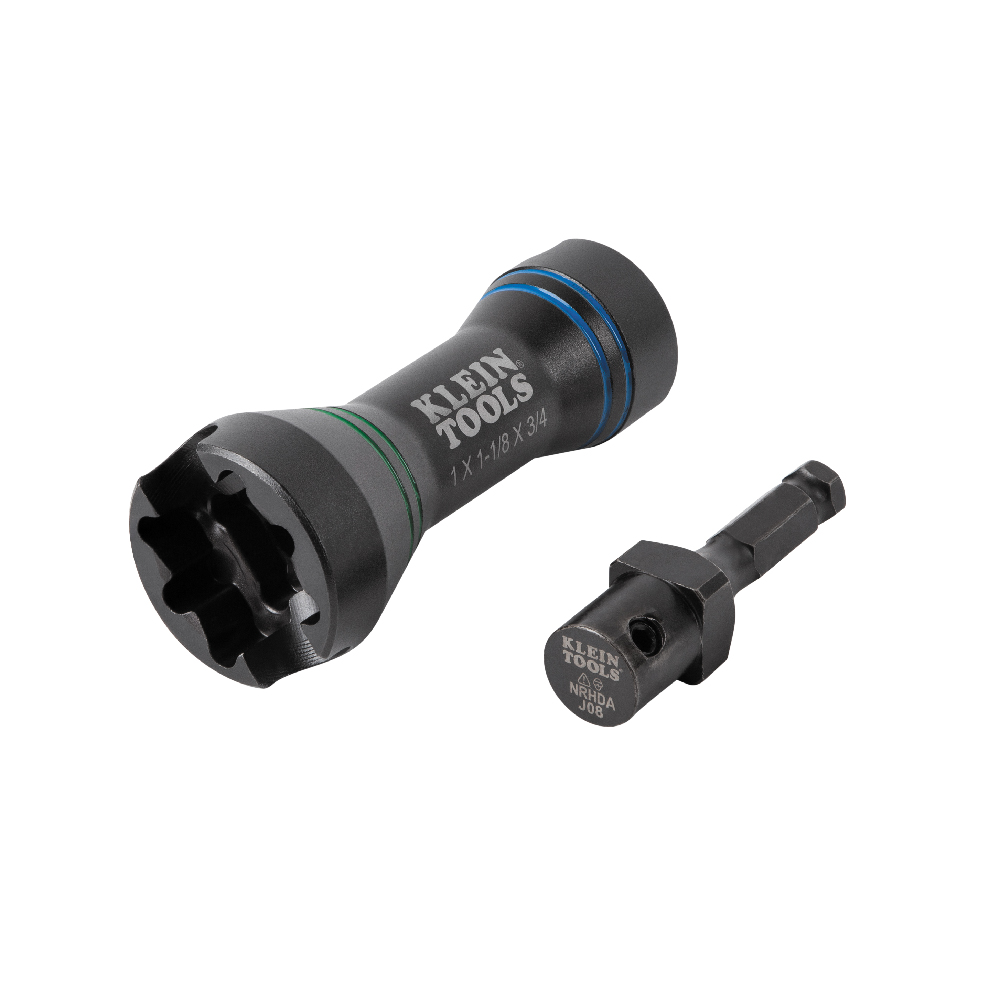

5-in-1 Mini Impact Socket

NRHDM

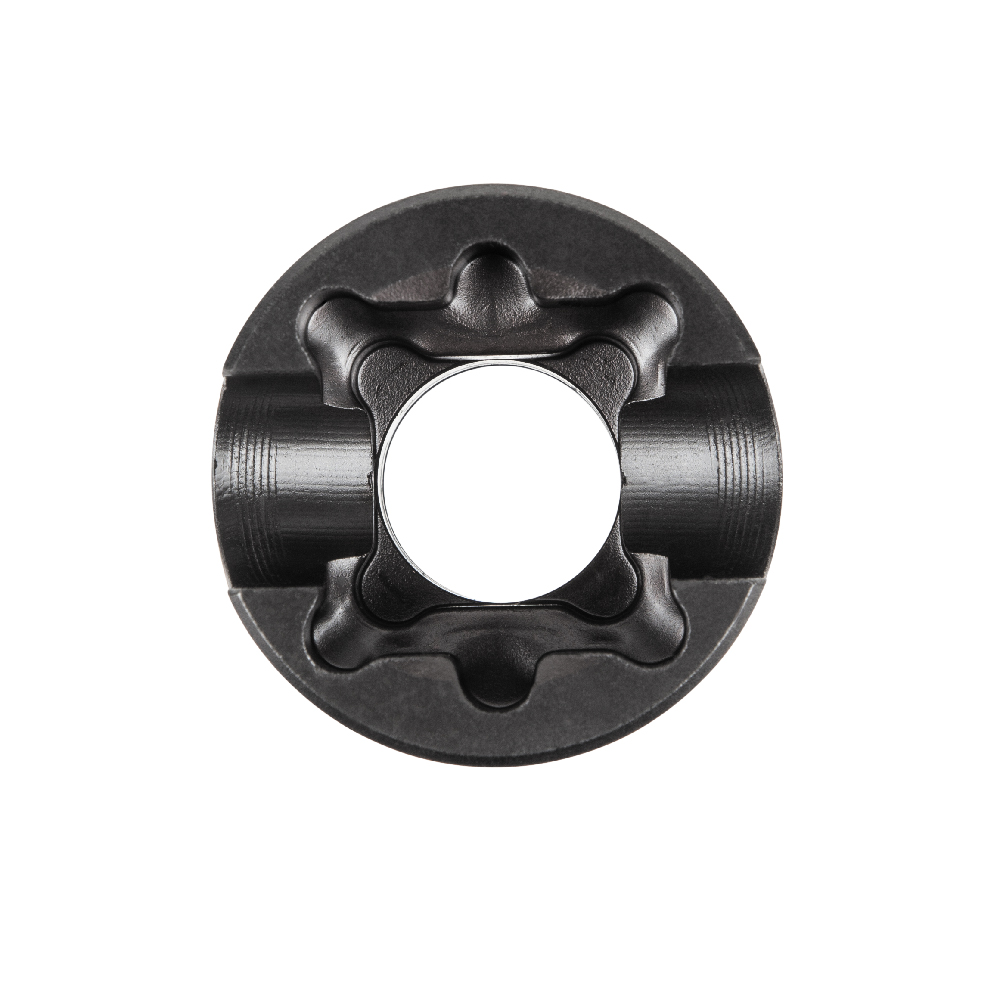

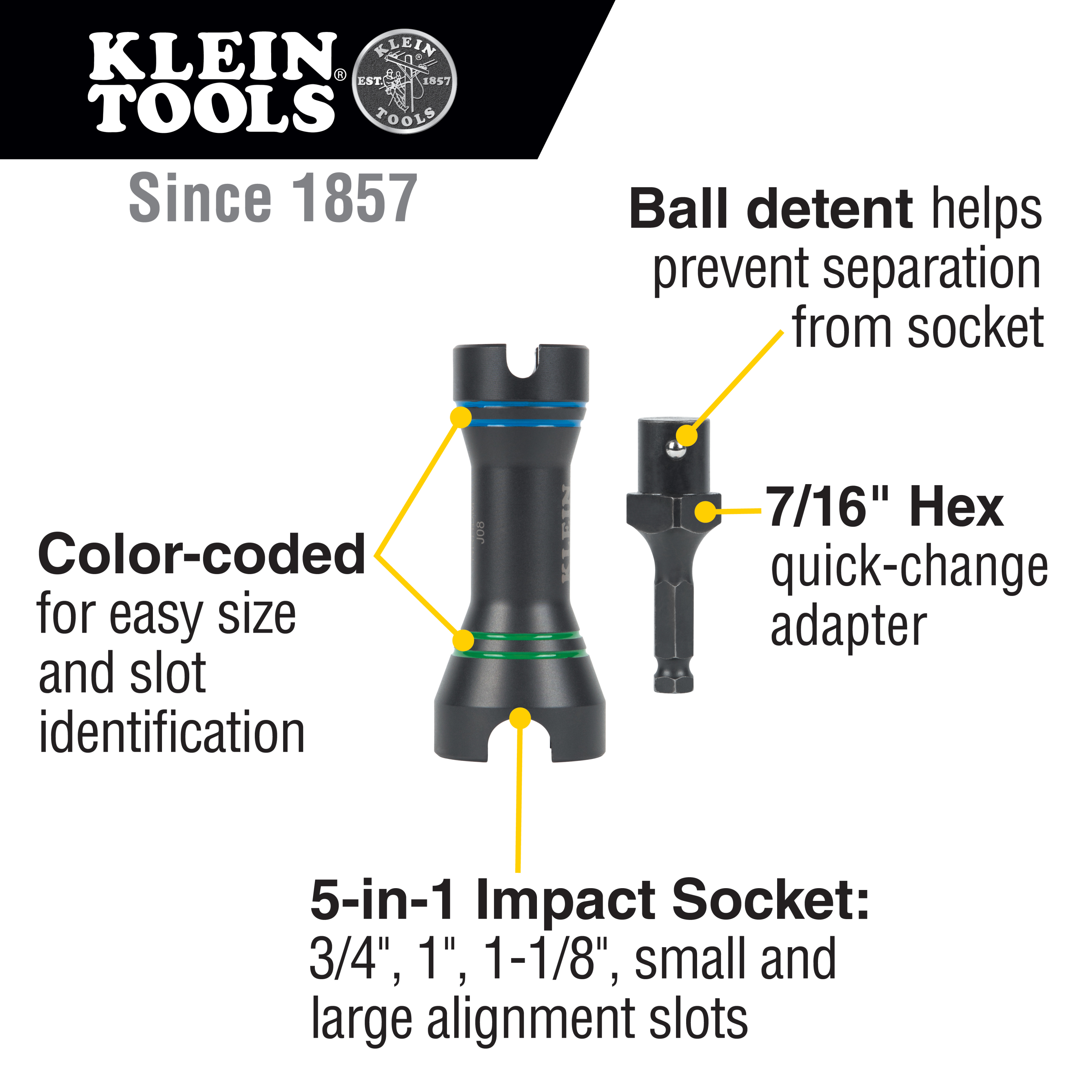

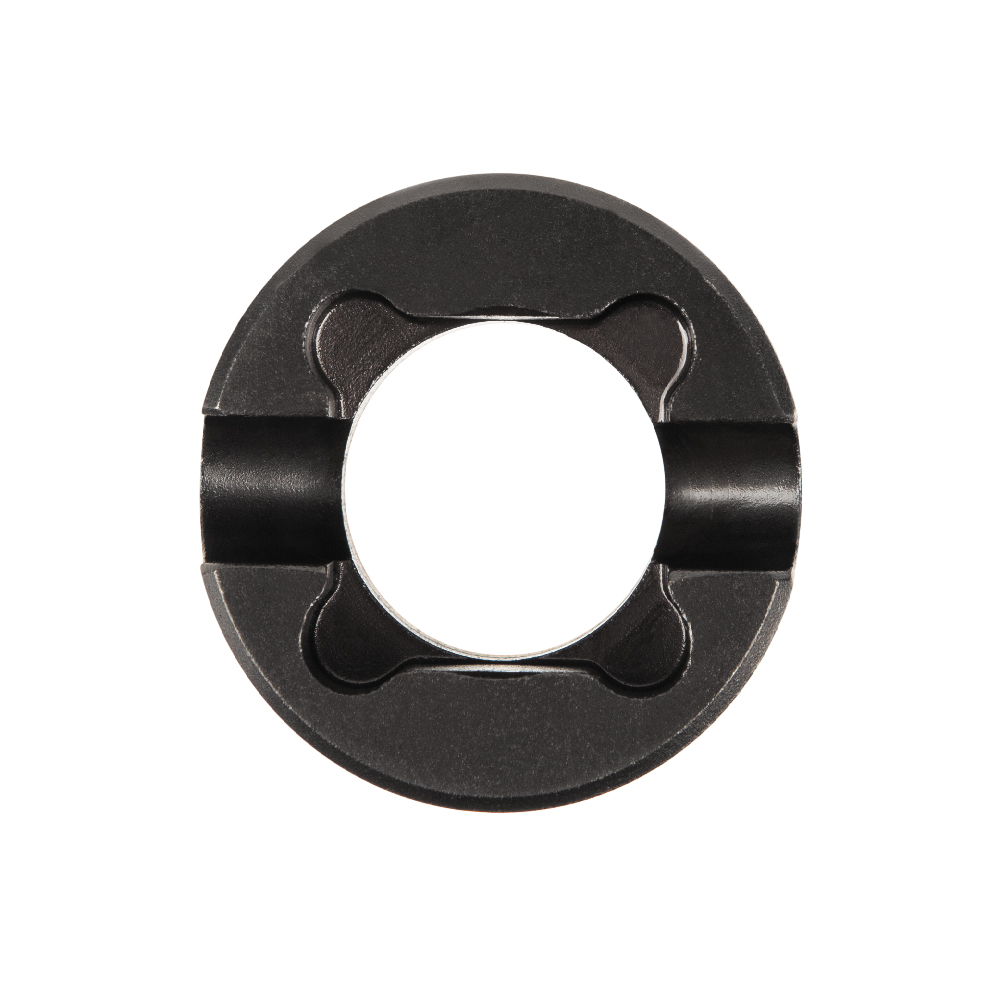

  • 5-in-1 Mini Impact Socket features three square socket sizes: 3/4-inch, 1-inch and 1-1/8-inch, with small and large alignment slots

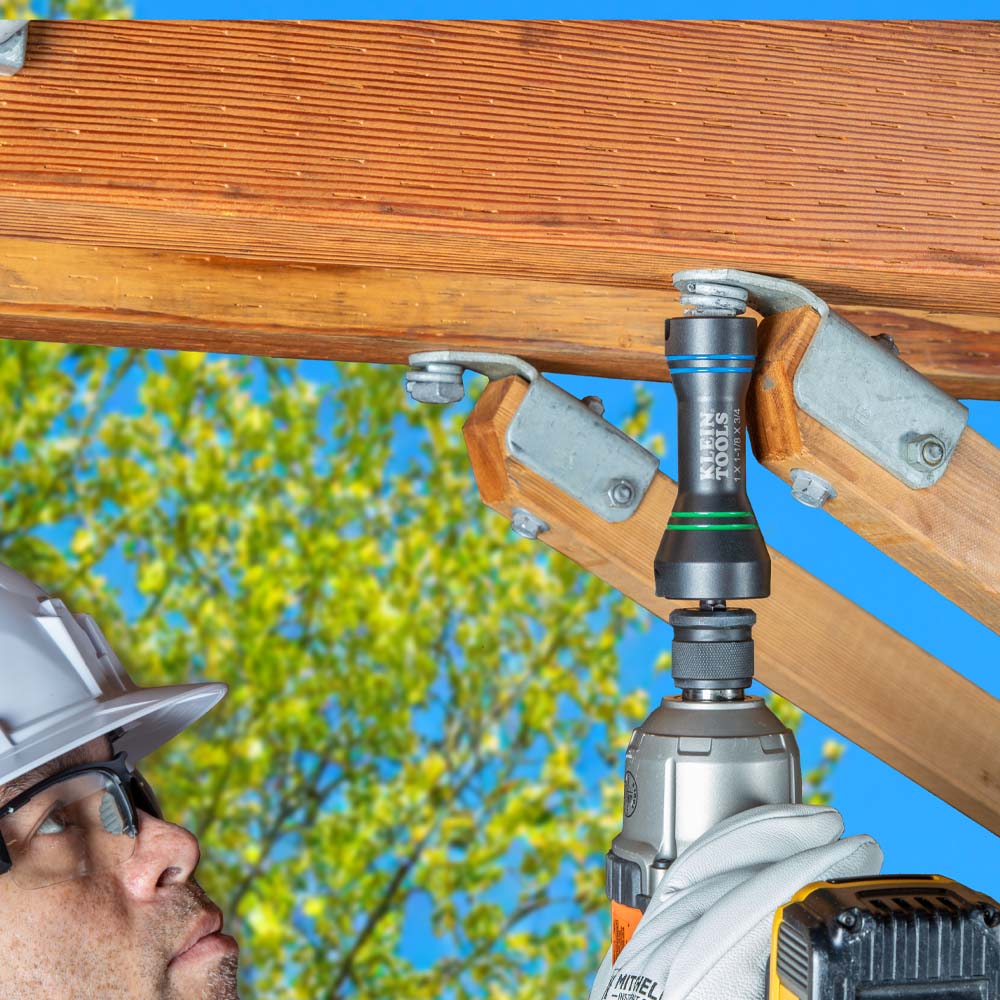

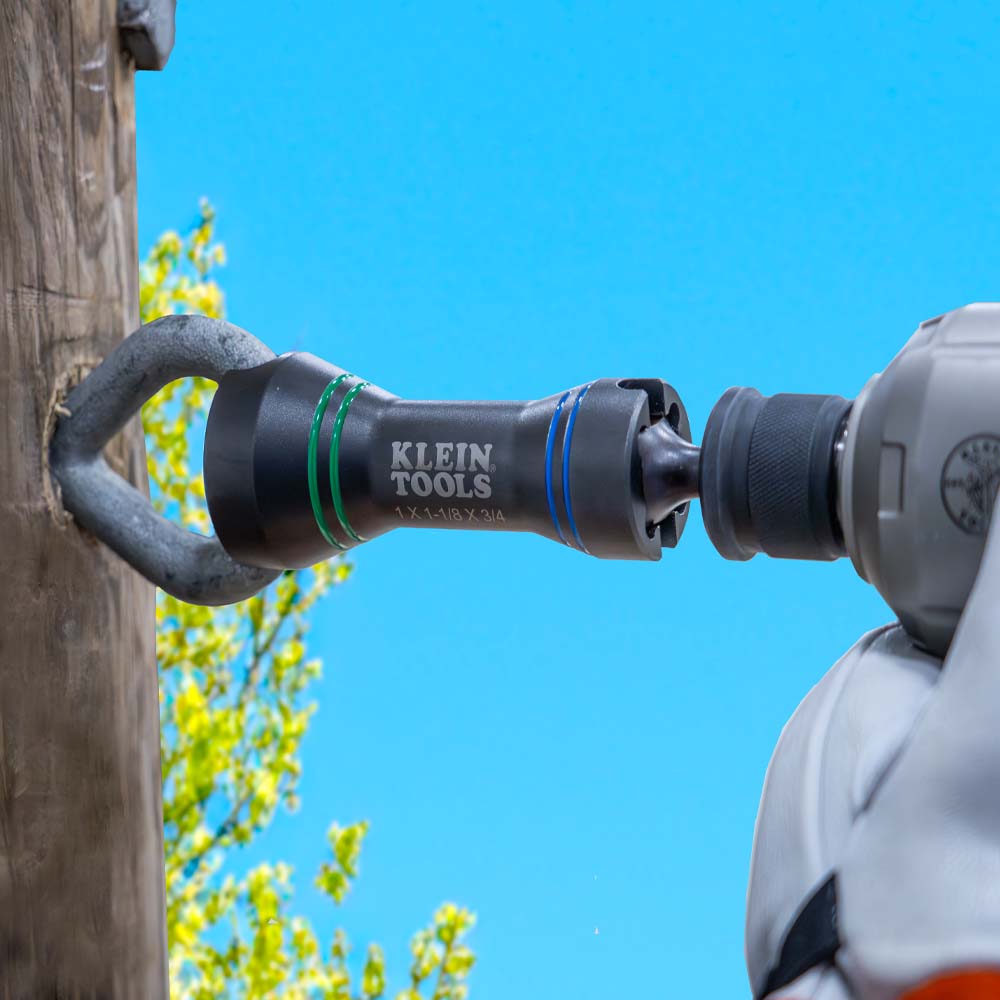

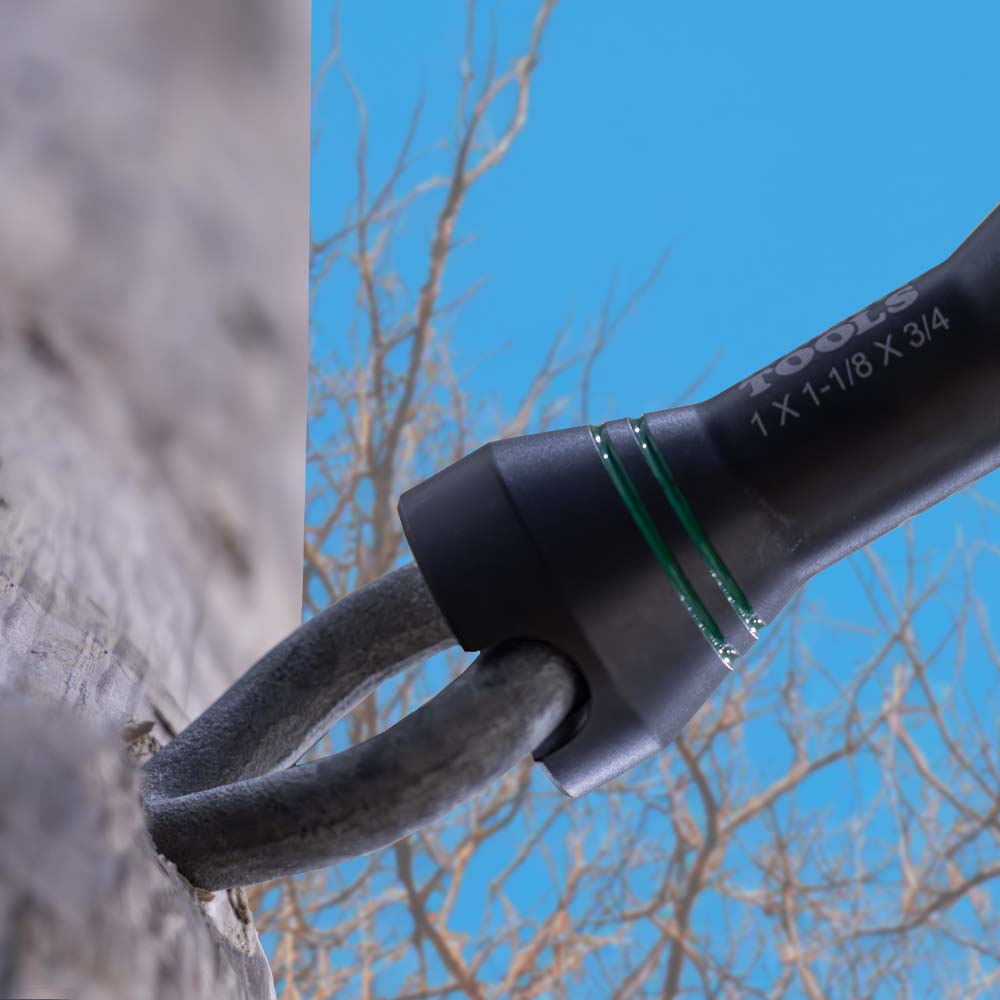

  • Alignment slot to tighten and loosen most pole hardware: Pole steps, drive hooks, eye bolts, J-hooks

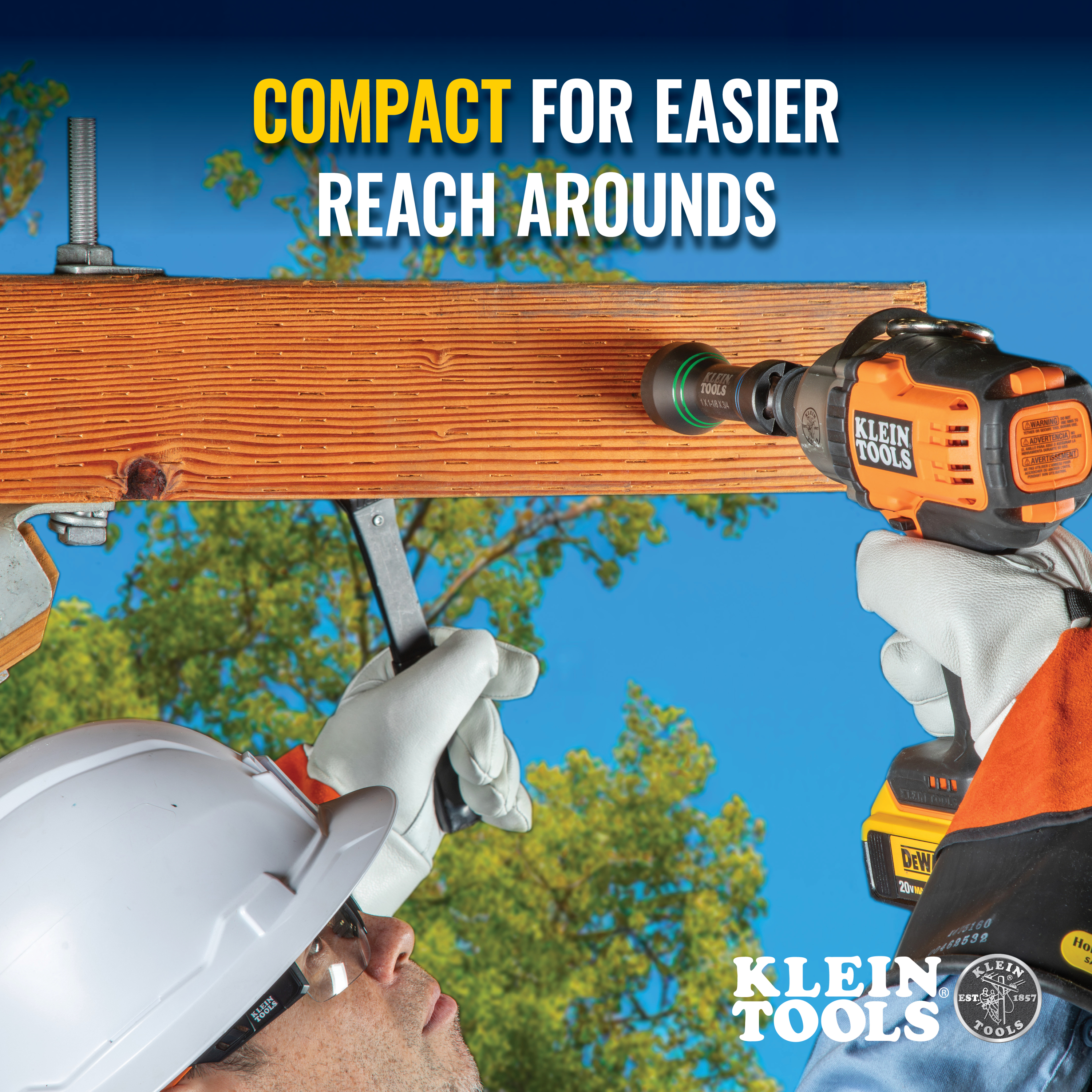

  • 13/16-inch diameter, 4-1/2-inch (11.4 cm) compact, hollow shaft assists linemen for pole reach arounds
  • 7/16-inch hex quick-change adaptor included
  • Reduced weight and compact design ease fatigue among utility workers
  • Fine-tuned ball tip provides improved retention, minimising dropping
  • Impact Rated

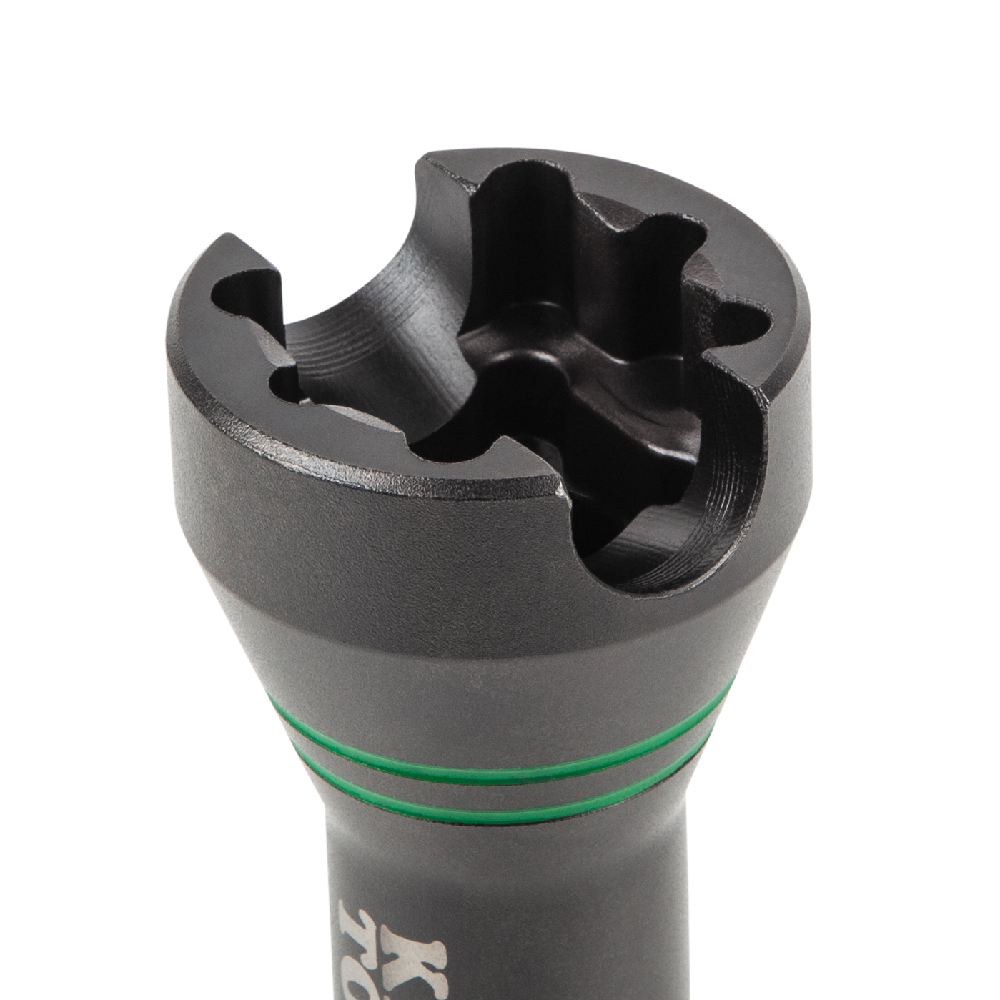

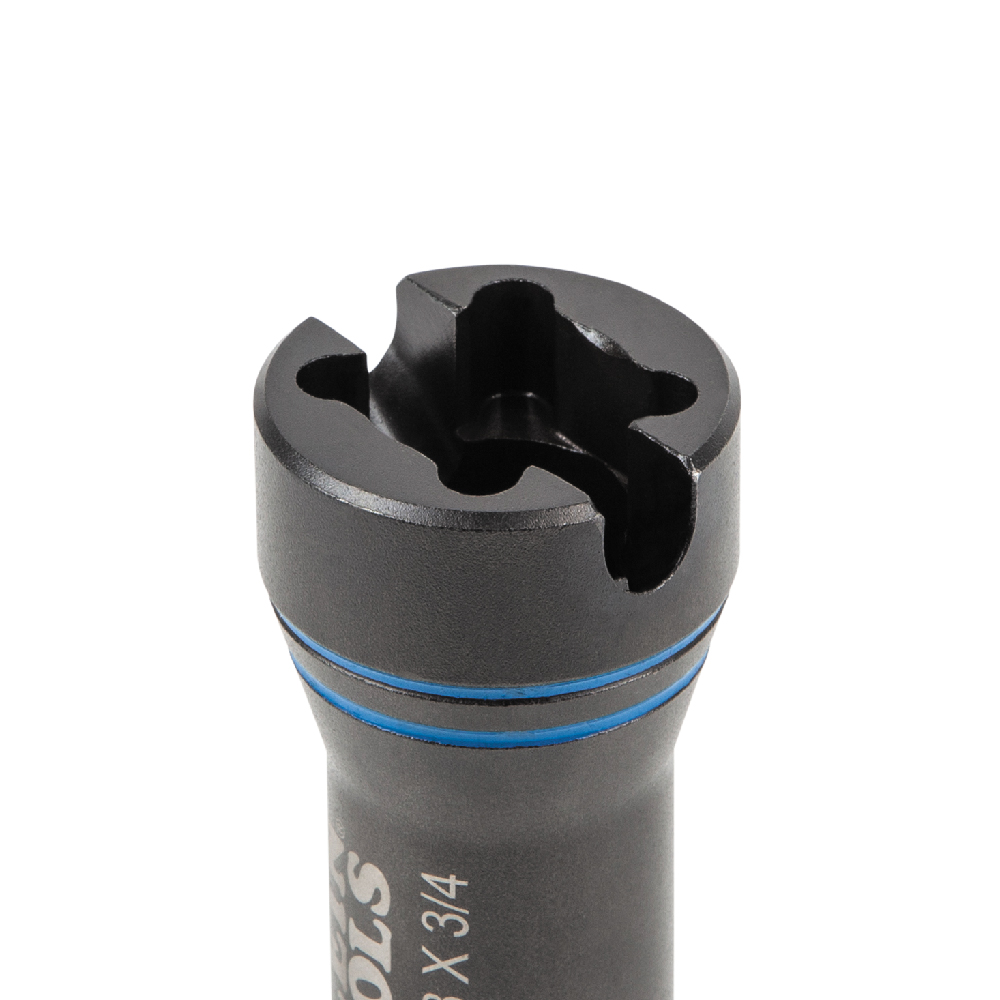

  • Colour-coded with double lines to identify slotted feature and a single line for socket size
  • Replacement adapter is available (Cat. No. NRHDA); sold separately
Downloads
Images
High-Res JPG nrhdm_photo.jpg
PNG nrhdm.png

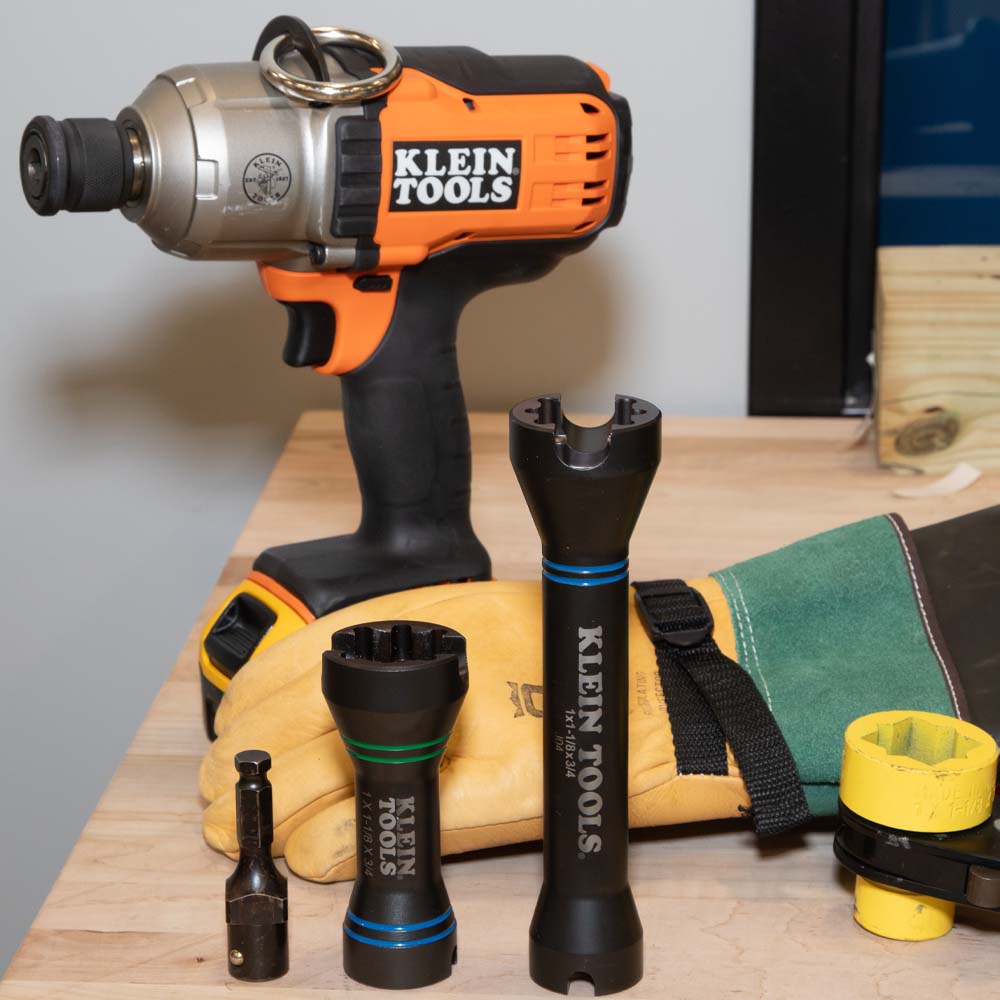

The Klein Tools versatile 5-in-1 Mini Impact Socket was designed for Linemen and Utility Workers. It features three popular square sizes that can be converted quickly and easily for a variety of utility-type applications. The compact size allows for easier reach arounds. Designed with an alignment slot to tighten and loosen most pole hardware. The small profile and reduced weight helps reduce fatigue for Utility Workers.

Specifications
Type:
Impact Rated
Application:
Hot-Line Clamp and Pole Hardware Installation and Removal
Special Features:

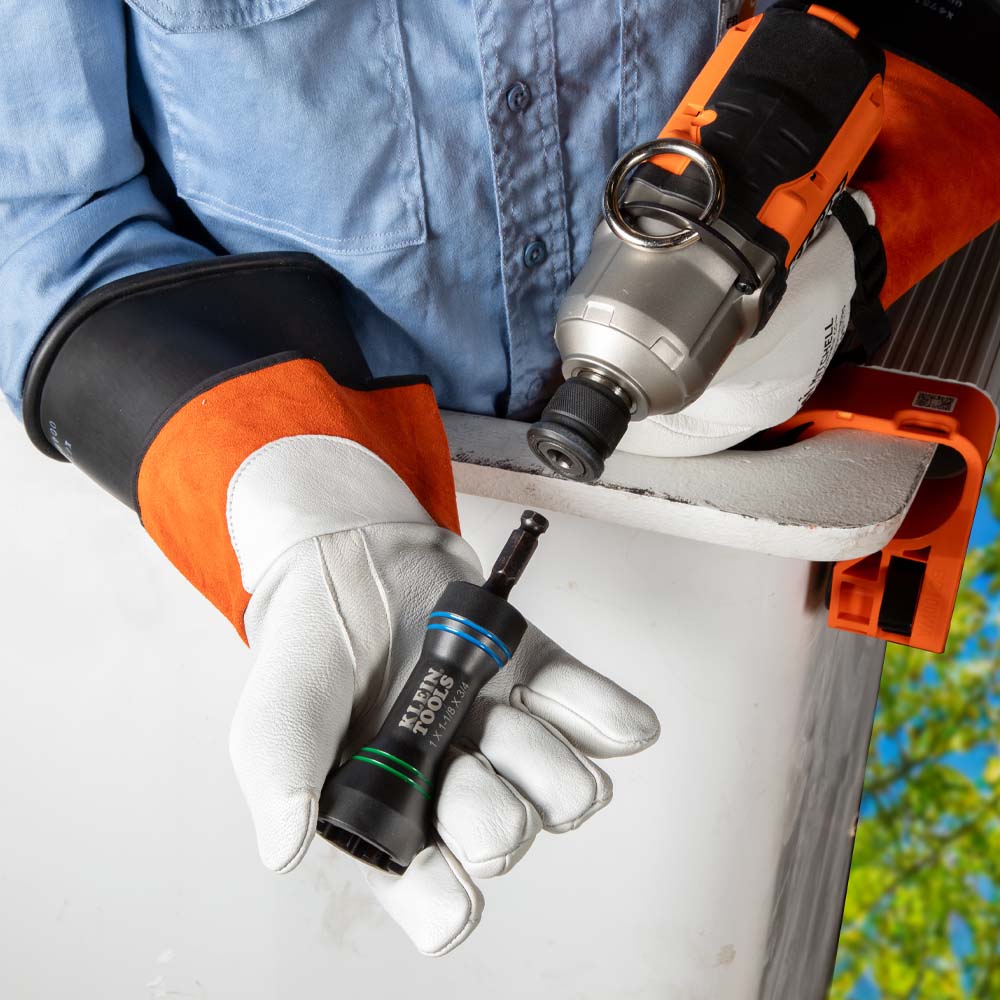

Large and Small Slots; Easily Switch Between Sizes Without Removing Your Gloves
Overall Length:
4.5'' (11.4 cm)
Overall Height:
1.9'' (4.8 cm)
Overall Width:
1.9'' (4.9 cm)
Material:
Steel
Drive Size:
7/16'' Hex
Socket Size:
3/4'', 1'', 1-1/8''
Number of Points:
4
Standard:
ASME B107.110
Case Included:
No
Included:
Impact Socket, Adapter
Number of Pieces:
2
Weight:
1.36 lb (0.6 kg)
UPC:
092644652721
Additional Information
Warnings
  • Always wear approved eye protection.
