RT390
Circuit Analyser
- Circuit Analyser with large colour LCD displays easy to understand results for wiring faults, AFCI, GFCI, voltage drops and time to trip devices

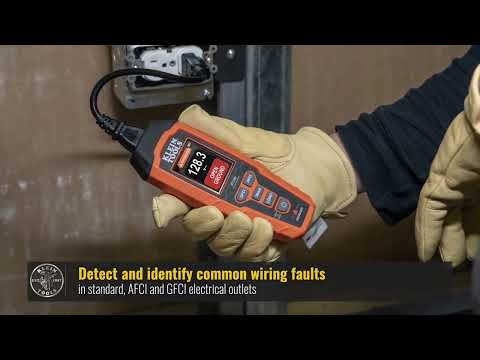

- Detect and identify common wiring faults in standard, AFCI and GFCI electrical outlets
- Detects dual (open neutral/open ground) wiring faults
- Inspect AFCI and GFCI devices; includes trip time and trip current
- 12A, 15A and 20A load testing to measure percentage voltage drops
- Powers off automatically after 5 minutes of inactivity to conserve battery life
- Detachable cord for easy storage
- For use with North American 120V AC 3-wire electrical outlets
- Safety Rating: CAT III 135V
The Klein Tools RT390 is a Circuit Analyser that tests the wiring conditions of an electrical outlet, displays the AC line voltage, inspects AFCI and GFCI devices with a time to trip device, and performs voltage drop tests at 12A, 15A and 20A current loads. Results are easy to understand with a large, colour LCD. The tester is designed for use with North American 120V AC 3-wire electrical outlets.
Specifications
Type:
Circuit Analyser
Application:
Test Wiring Faults, Inspects AFCI and GFCI Devices, Displays Line Voltage, Voltage Drop
Special Features:
Tests AFCI and GFCI, Large LCD Display, Detects Dual-Open Wiring Fault, Shows Amount of Time it Takes to Trip GFCI
Material:
ABS Plastic, Overmould, Electronic Components
Drop Protection:
6.6' (2 m)
AFCI:
Yes
GFCI:
Yes
Voltage:
135V AC
Batteries:
3 x AAA Alkaline
Included:
Circuit Analyser; 3 x AAA Batteries; Instructions and Pouch
Standard:
CAT III 135V
Overall Length (inches):
1.5
Overall Length (cm):
3.8
Overall Height (inches):
7.1
Overall Height (cm):
18
Overall Width (inches):
2.7
Overall Width (cm):
6.9
Weight (oz):
10.9
Weight (g):
309
UPC:
092644693632
