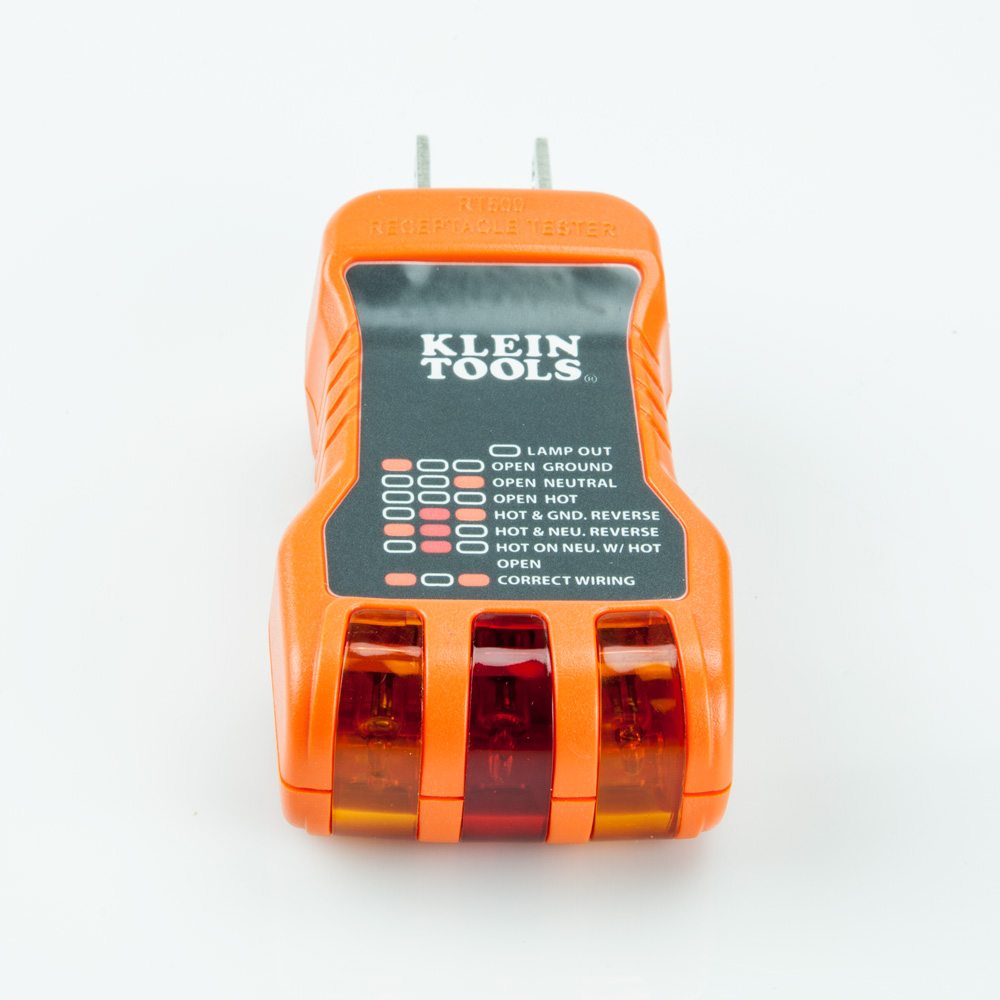

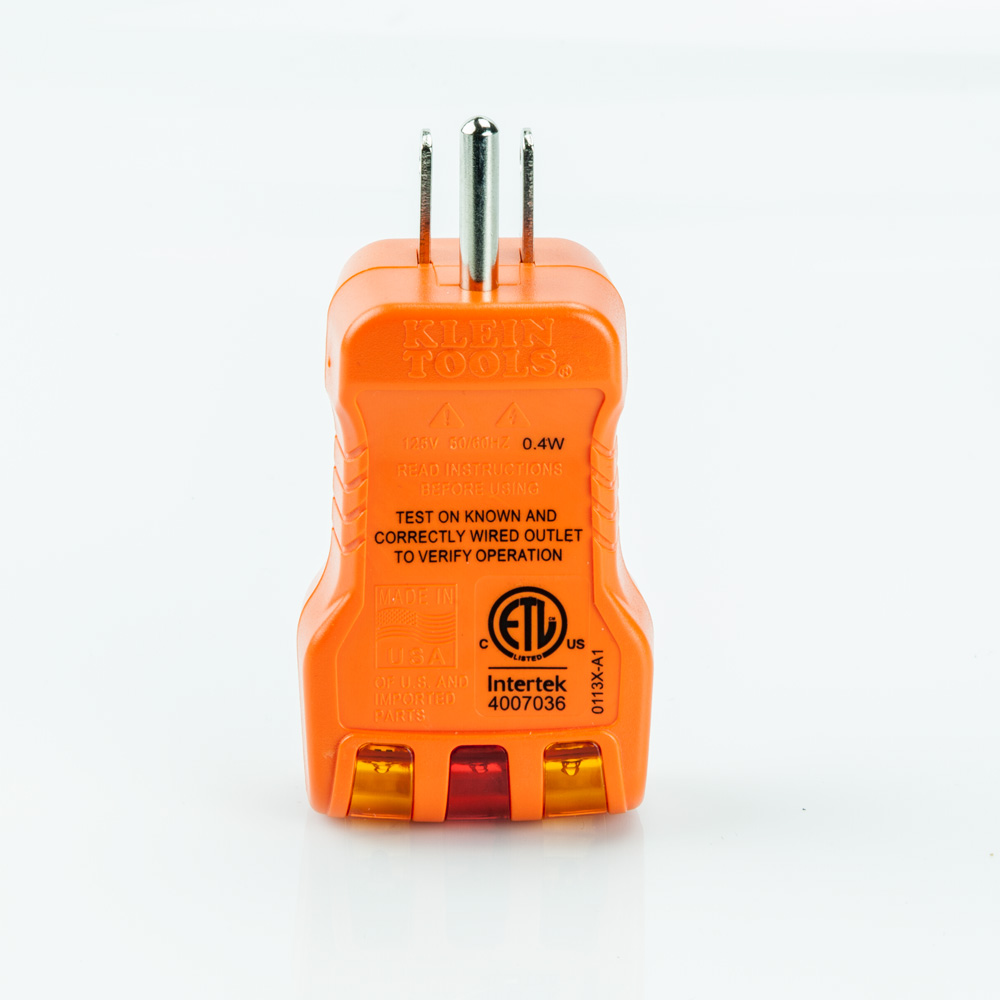

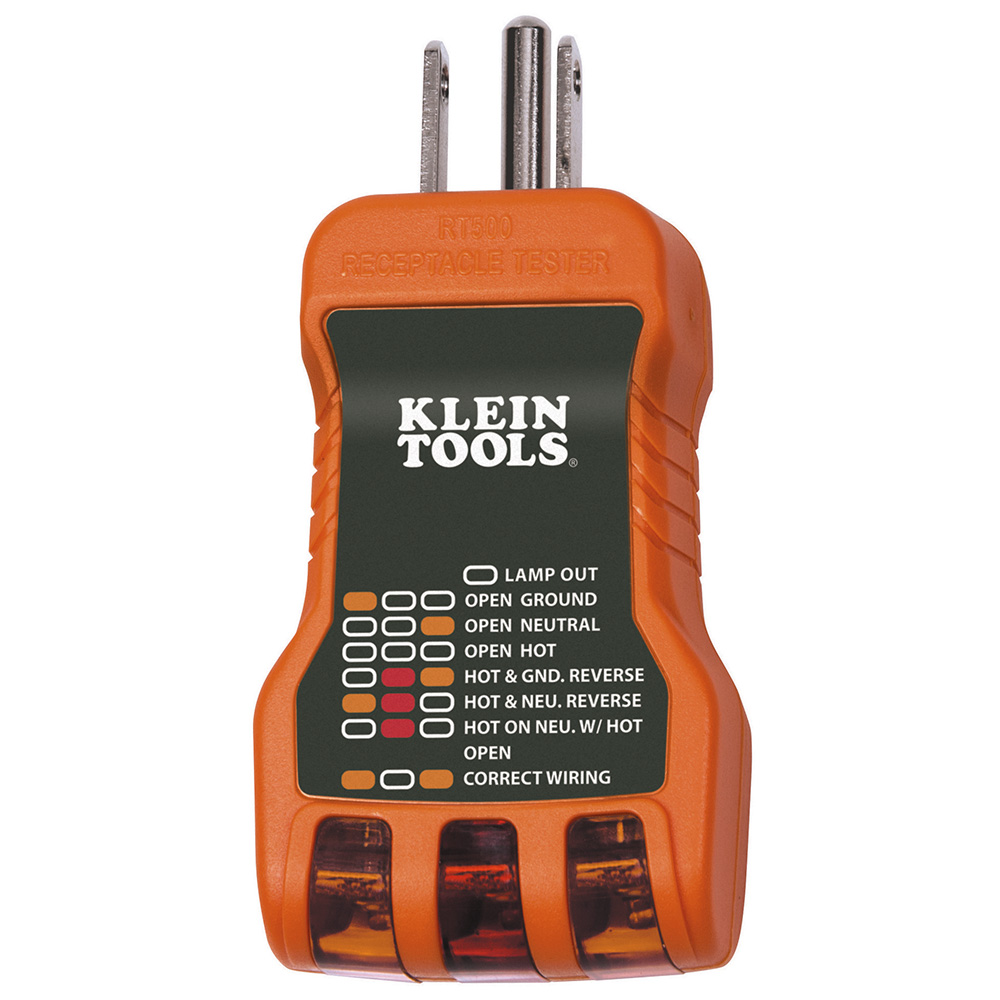

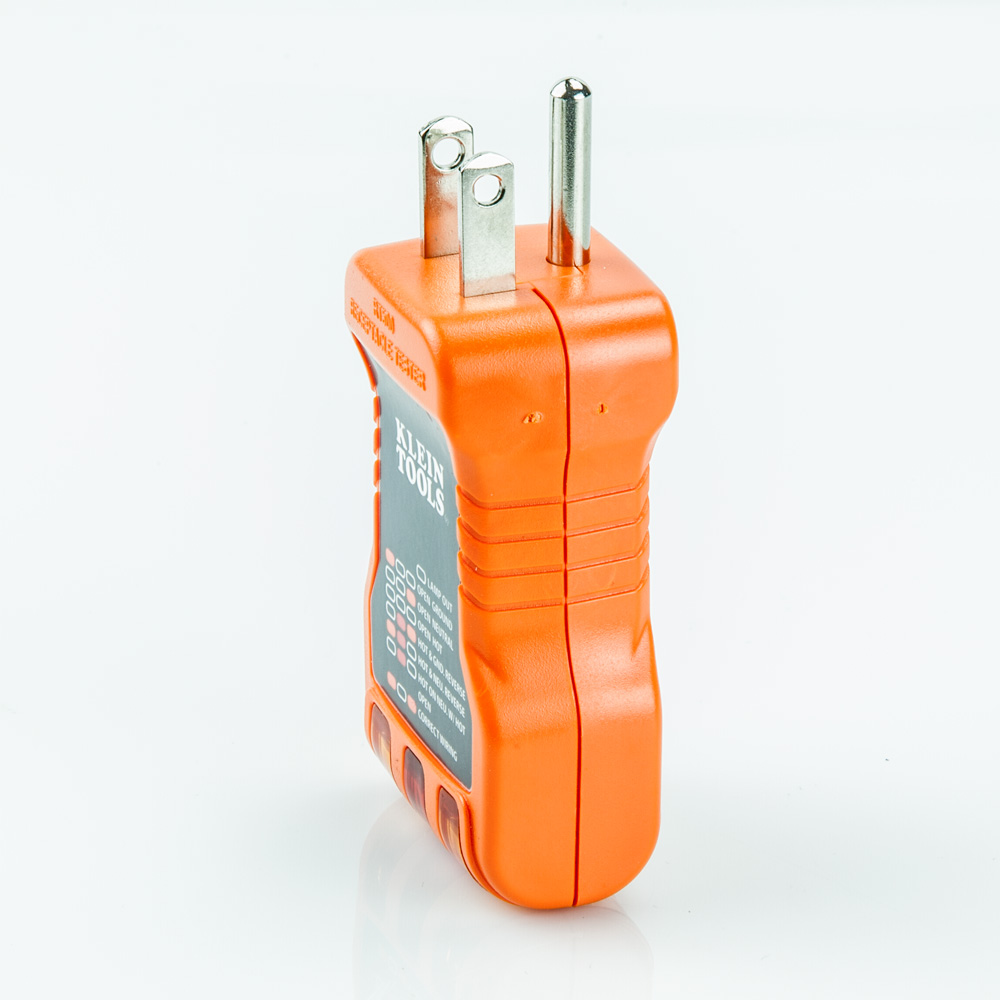

Receptacle Tester - USA Made

RT500

  • Designed to detect the most common wiring problems in standard 120V receptacles.
  • Test for correct wiring, open ground, reverse polarity, open hot, open neutral, hot and ground reversed.
  • Conditions NOT indicated: Quality of ground, multiple hot wires, combinations of defects, reversal of grounded and grounding conductors.
  • Large light indicators for greater visibility.
  • Reinforced prongs for increased durability.
  • Push-pull design with slip-resistance ribbing.
  • Made in USA from US and imported parts.
etl-intertek Product Icon
Videos
Downloads
Images
High-Res JPG rt500_photo.jpg

The RT500 receptacle tester is designed to detect the most common wiring problems in standard 120 V receptacles. You can test your receptacles for correct wiring, open ground, hot and ground reversed, open hot, open neutral and reverse polarity. Conditions NOT indicated: quality of ground, multiple hot wires, combinations of defects, reversal of grounded and grounding conductors.

Specifications
Height:
2.8'' (71 mm)
Overall Length:
2.8'' (71 mm)
Width:
1.74'' (44 mm)
UPC:
092644694042
Additional Information
Warnings
  • Read, understand and follow all instructions, cautions and warnings attached to and/or packed with all test and measurement devices before each use.
