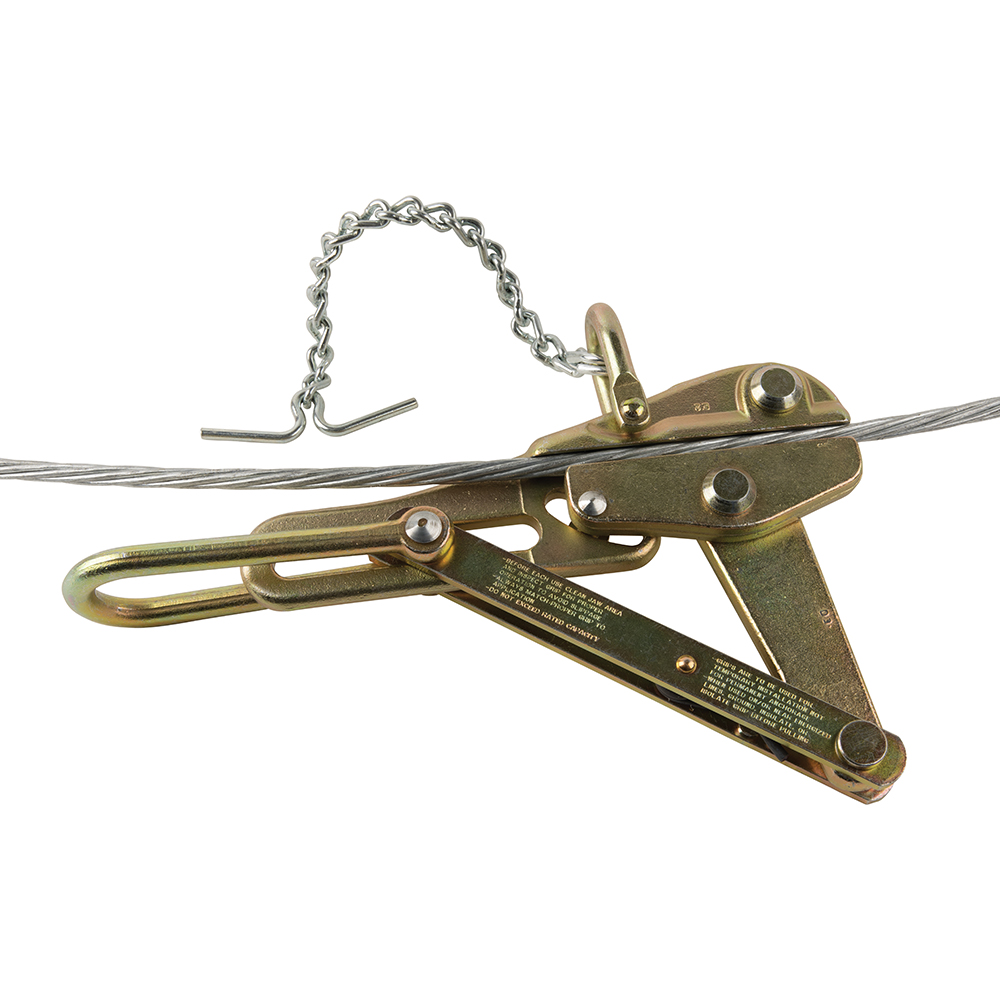

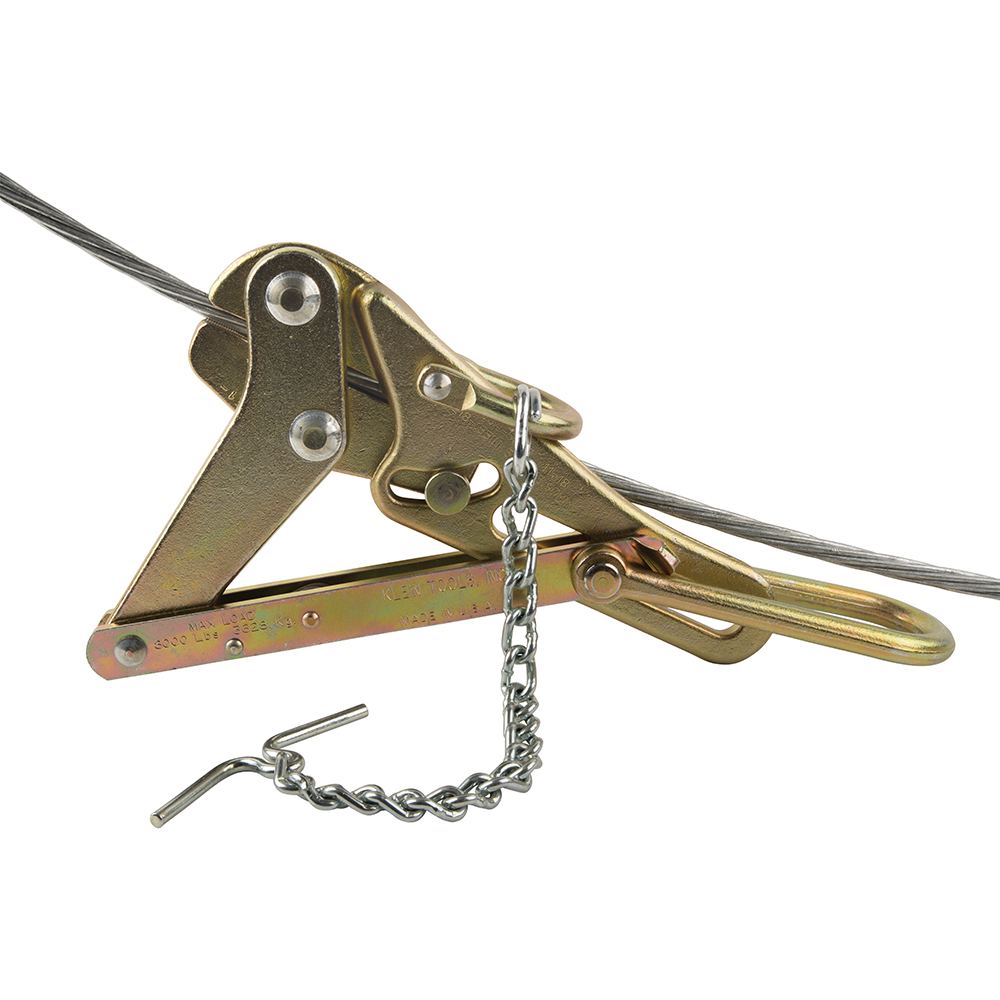

Chicago™ Grip Coated Guy Wire with Chain
16845CAT
- Aggressive sawtooth jaw profile resists build-up from galvanised coating on guy strand and EHS cables
- Equipped with chain, toggle and shackle to keep grip from falling off the cable
- Designed for cable in sizes from 0.218'' to 0.55'' (5.54 mm to 13.97 mm)
- 5'' (127 mm) jaw length for extra gripping area on stranded cable and a spring that closes the grip on cable, helping to maintain the initial position
- Made in the USA
- Locking handle keeps jaw open while the grip is placed on the cable with a hot stick
- Maximum Safe Load is 8000 lbs (3629 kg)
This Chicago Grip is designed specifically to work with coated guy strand and EHS cable. Klein grips are made of drop-forged, quality US steel and heat treated for strength and durability. The chain, toggle and shackle keep the grip from falling off the cable. The 5'' jaw length increases the surface area contact with the cable, minimising cable damage. The sawtooth jaw profile resists galvanisation build-up.
Specifications
Type:
Chicago Grip
Application:
Wire pulling
Special Features:
Equipped with a Chain, Toggle and Shackle
Overall Length:
13.3'' (33.8 cm)
Overall Height:
2.5'' (6.4 cm)
Overall Width:
7.6'' (19.3 cm)
Material:
Alloy steel
Cable type:
Aircraft, EHS, Messenger, Guy Strand
Cable Diameter:
0.218'' to 0.55'' (5.54 to 13.97 mm)
Hot Latch:
N
Swing Latch:
N
Spring:
Y
Locking Handle:
Y
Jaw Type:
Aggressive
Jaw Length:
5'' (12.7 cm)
Maximum Safe Load:
8000 lb (3629 kg)
Weight:
6.9 lb (3.1 kg)
UPC:
092644470707
Additional Information
Warnings
- Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
- When used on/near live lines, ground, insulate or isolate grip before pulling.
- Do not exceed rated capacity.
- Always match proper size and type of grip to application.
- Grips are to be used for temporary installation, not for permanent anchorage.
