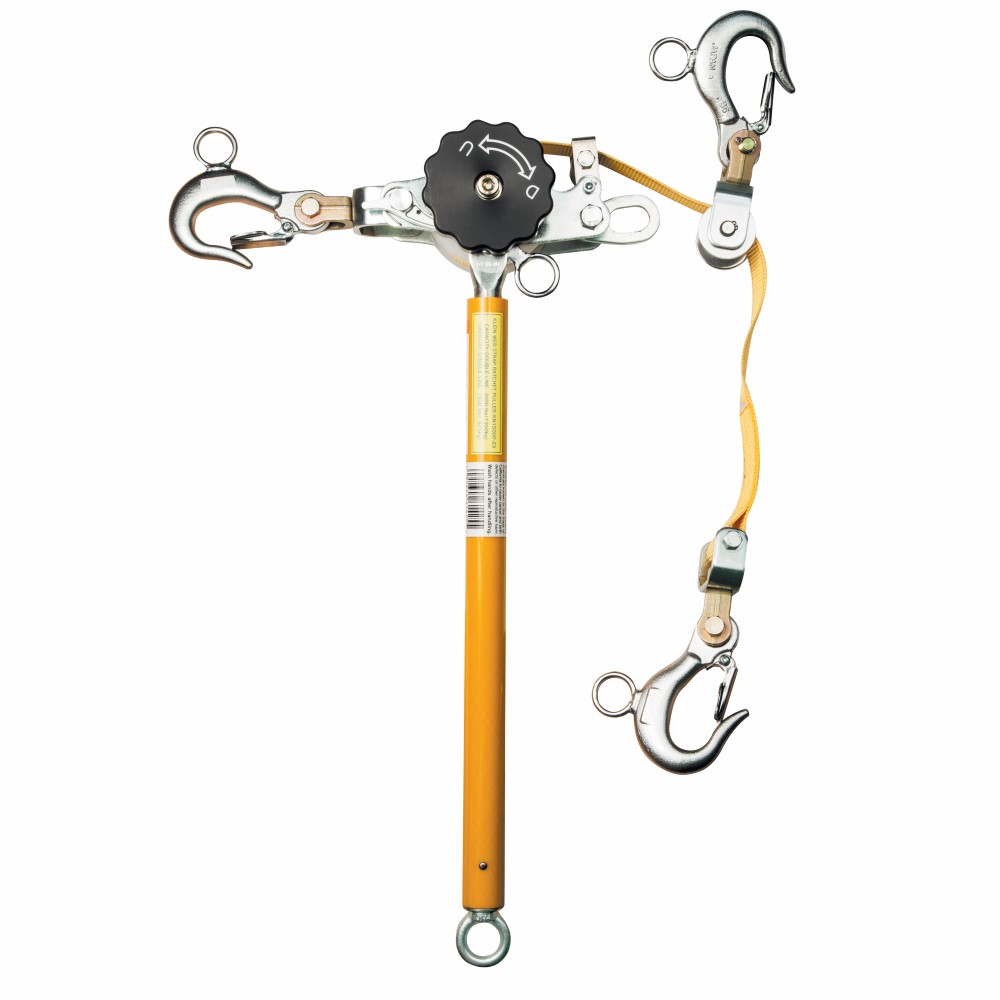

Web-Strap Ratchet Hoist with Hot Rings
KN1500PEXH
- Tight ratcheting mechanism allows precise tensioning with less work and fatigue.
- 1-1/2-ton double-line, 3/4-ton single-line load rating
- Non-conductive dial allows web slack to be adjusted with ease.
- Hot rings on hooks, switch and end of handle enable use with hot stick.
- 360° handle rotation allows use from any angle
- Meets ANSI/ASME B30.21-2005 and B30.10-2009 standards.
- Has a single line pulling distance of 20'' to 138'' (50.5 to 350.5 cm)
Klein Tools' Web-Strap Ratchet Hoist with hot rings to accommodate hot sticks. The hoist features a tighter ratchet to reduce work and fatigue. The handle and drum knob allow you to safely control the tension release to avoid free-wheeling. The hoist can be used in both a single-line and double-line configuration. The handle provides a 360° range of motion for easier adjustment from any angle.
Specifications
Single-Line Pulling Distance:
20'' to 138'' (50.5 to 350.5 cm)
Single-Line Load Rating:
1500 lb (680 kg)
Double-Line Pulling Distance:
26'' to 79'' (66.0 to 200.6 cm)
Double-Line Load Rating:
3000 lb (1361 kg)
Standard:
ANSI/ASME B30.21-2014 and B30.10-2014
Included:
Hoist; Hot Rings
Weight:
13.6 lb (6.2 kg)
UPC:
092644611032
