Portable Power Station, 500W
KTB500
- Portable Power Station delivers 500W of Pure Sine-Wave AC power (up to 1000W surge)

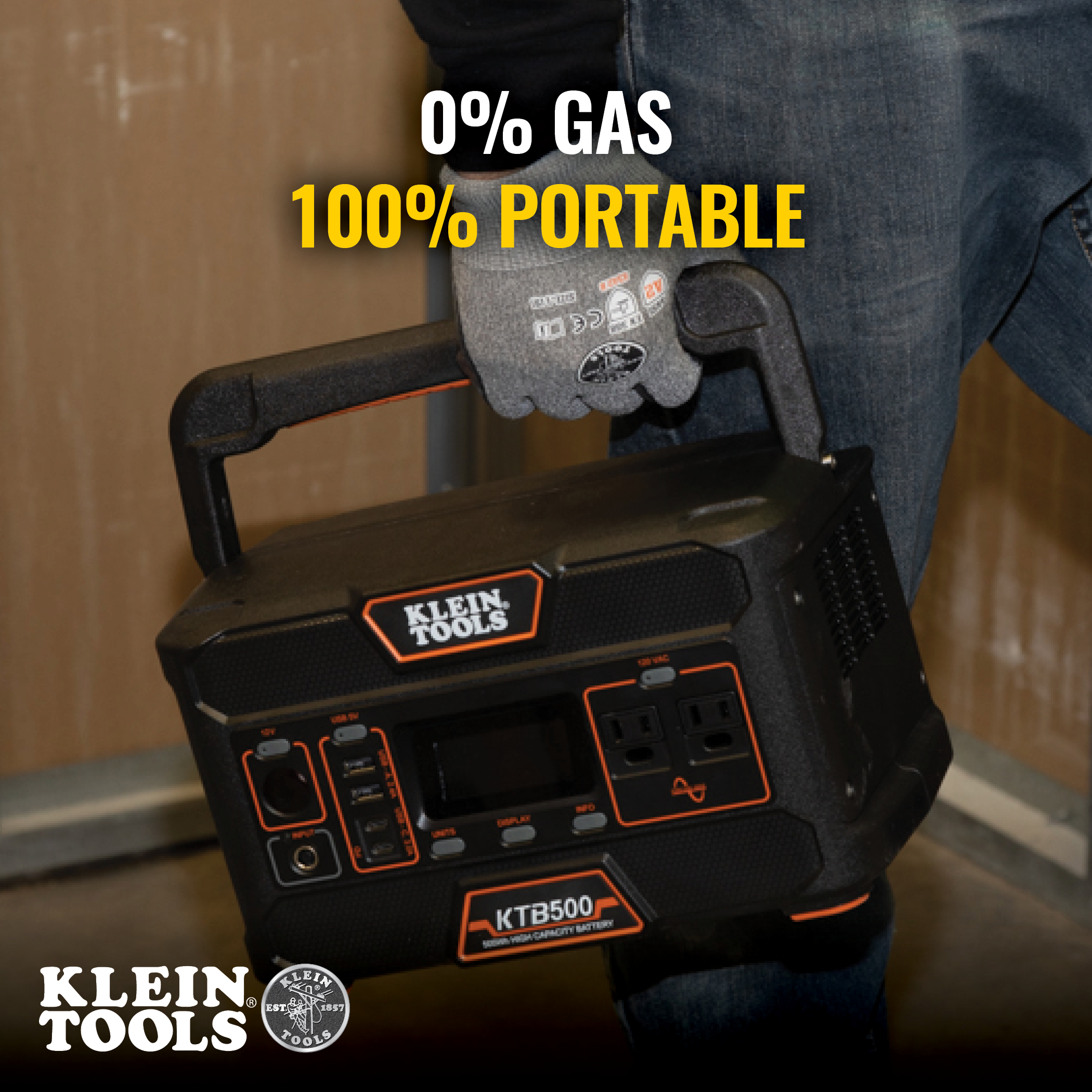

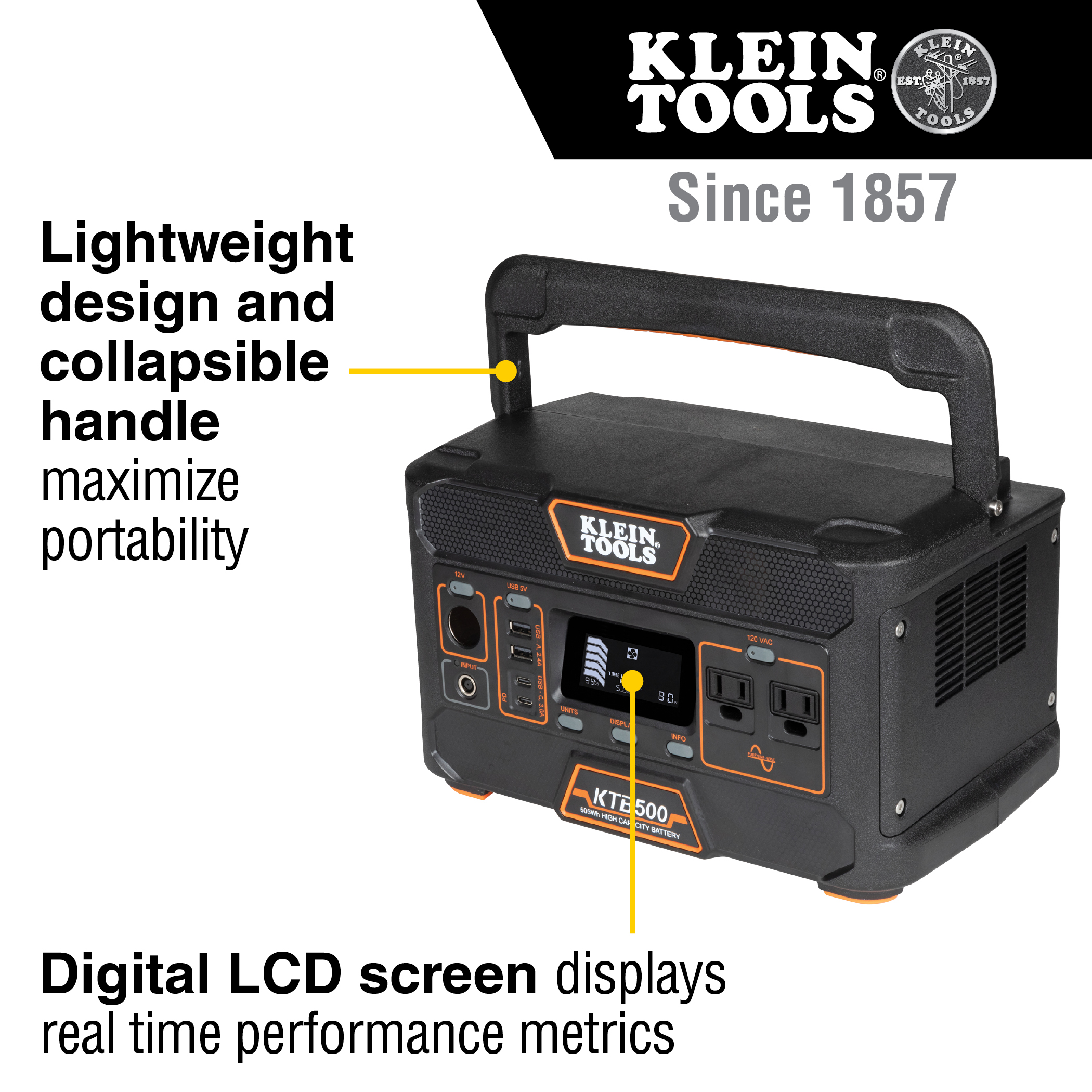

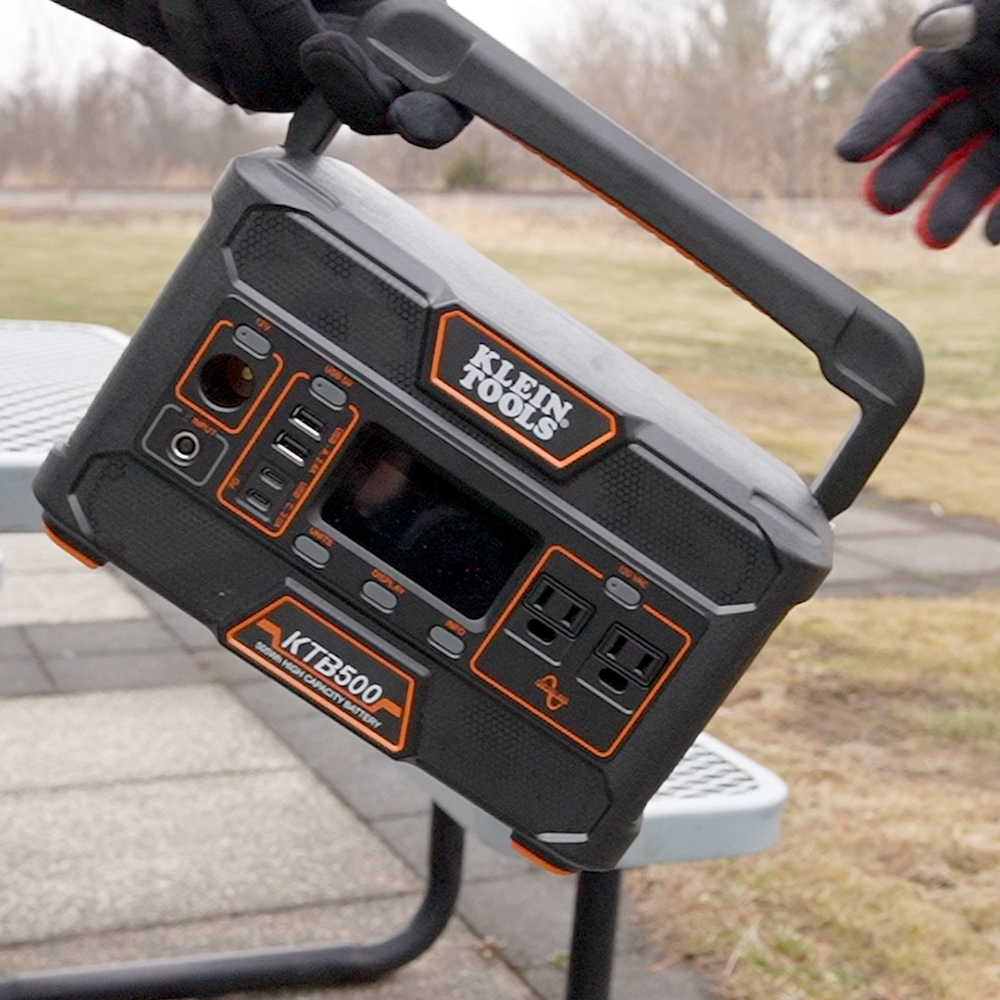

- Lightweight design and a collapsible handle maximise portability
- Built-in lithium-ion battery pack allows for safe indoor use, even in confined spaces

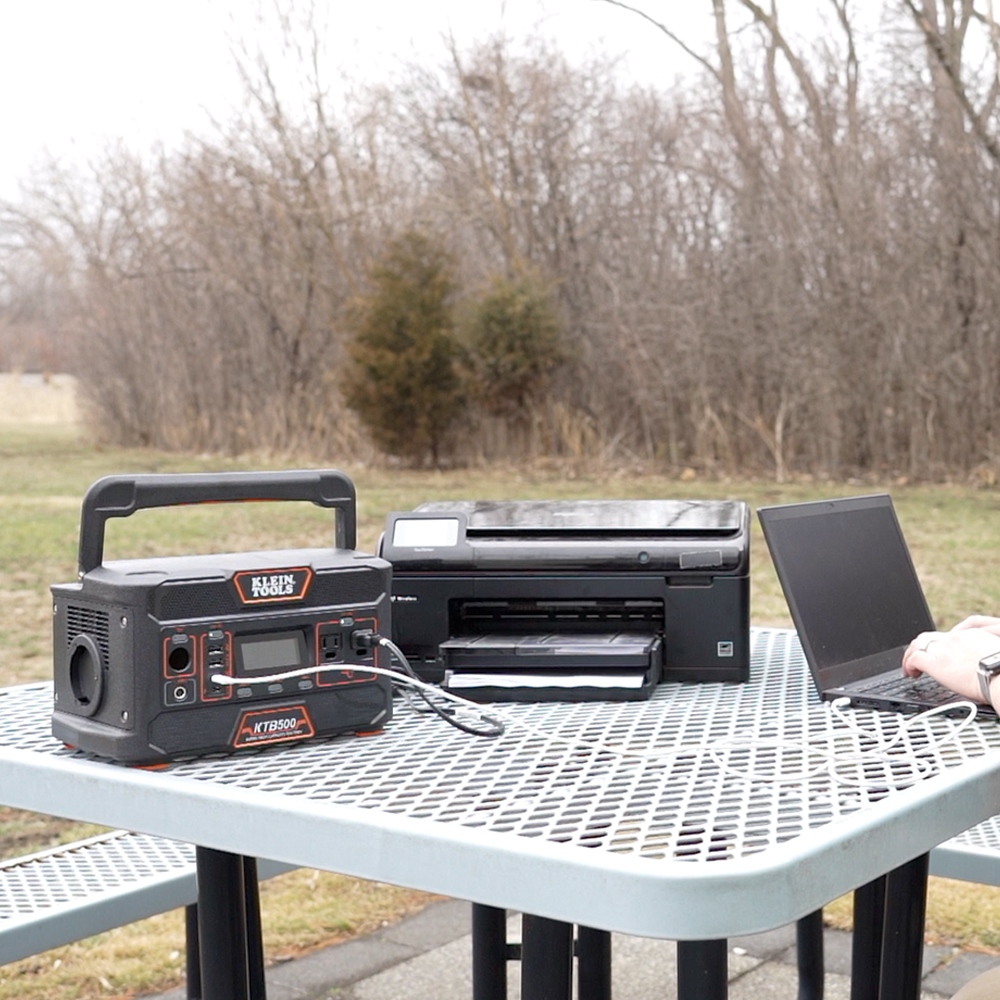

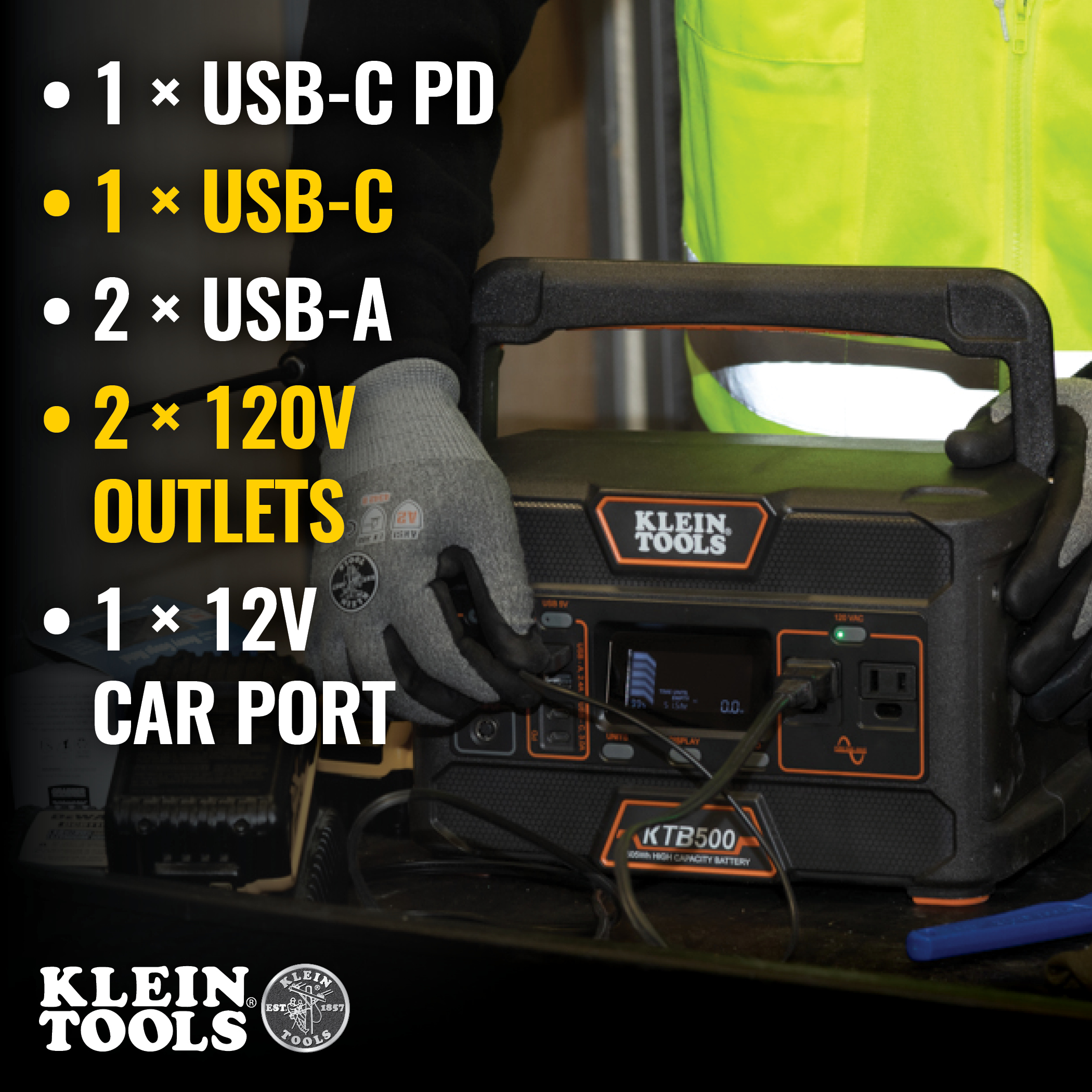

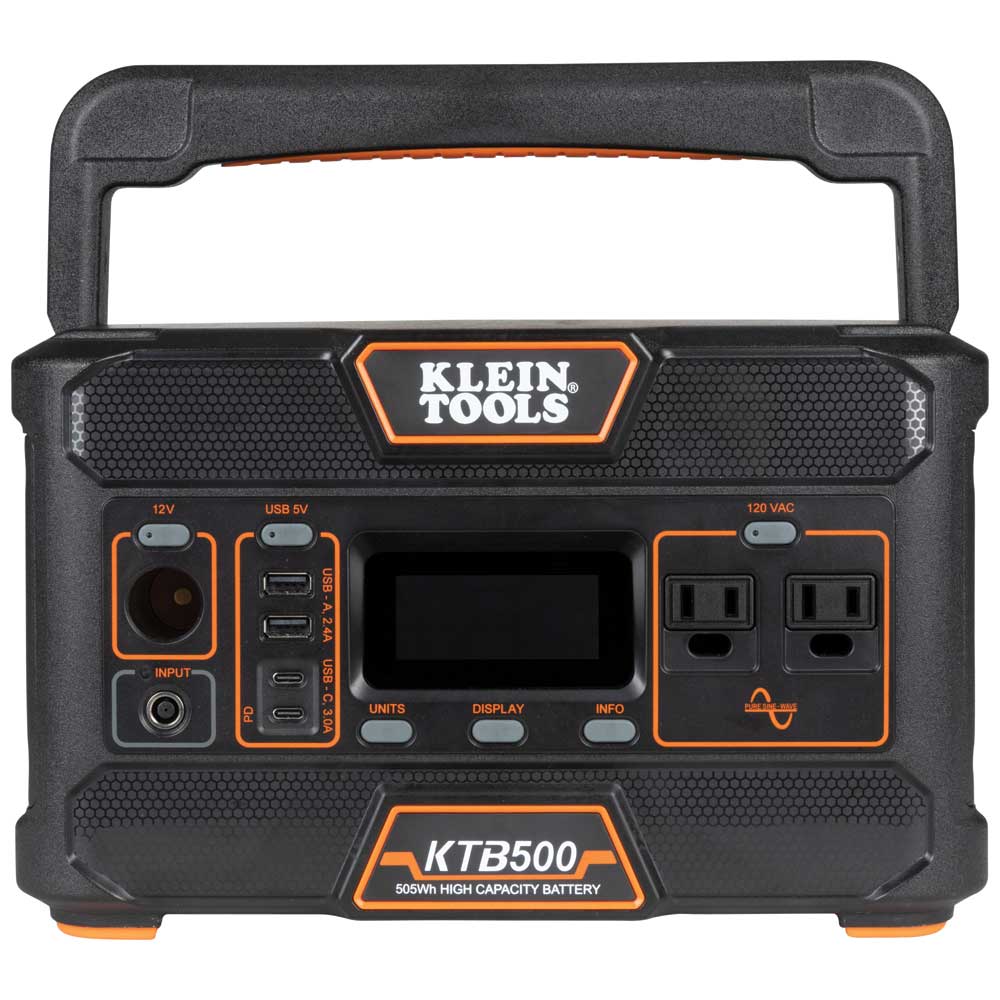

- Charge and power up to 7 devices simultaneously: two 120V outlets, four USB ports (60W USB-C PD, USB-C and 2 x USB-A) and a 12V car port
- Digital LCD Screen displays real time performance metrics, including time until empty

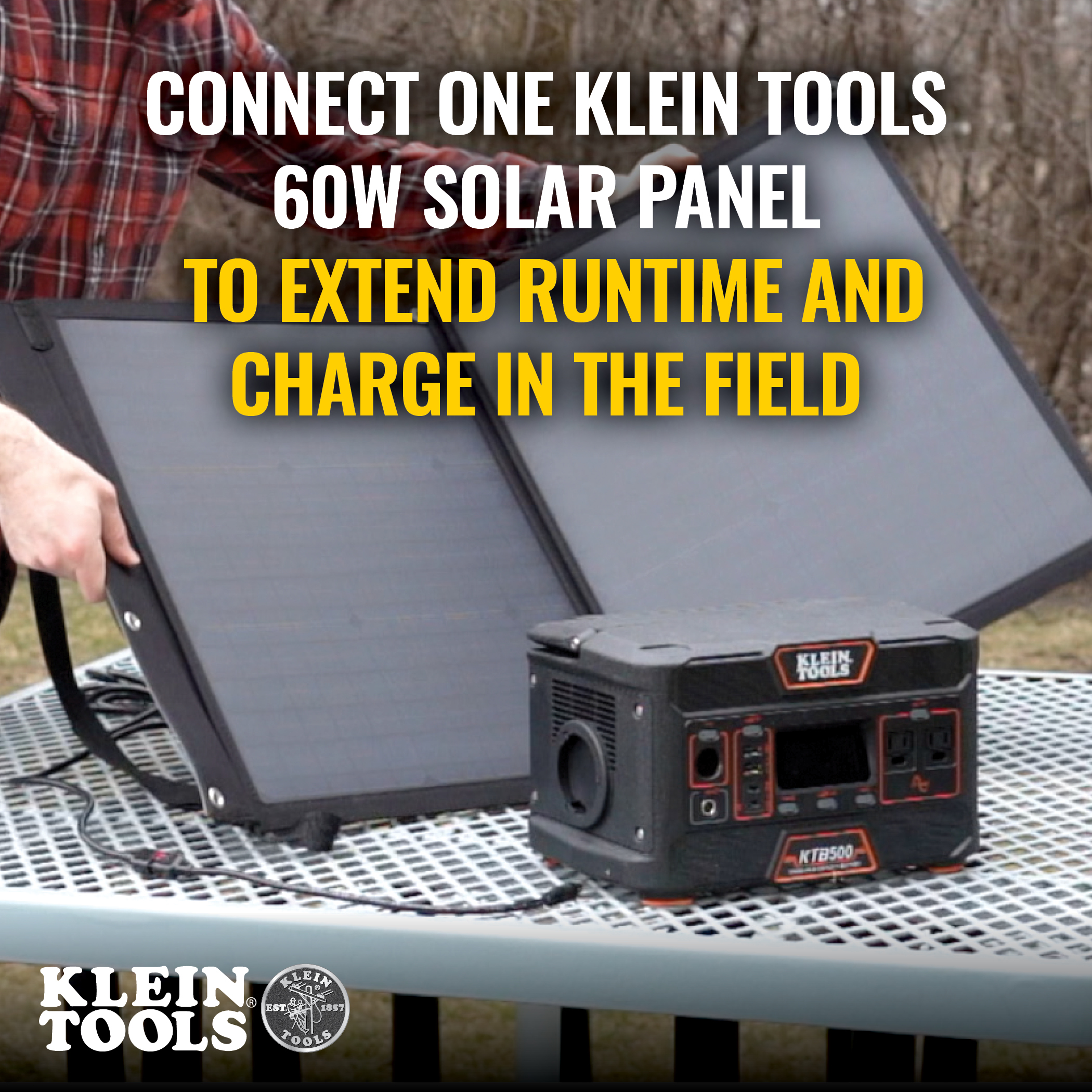

- Harness the sun's energy with the Klein Tools Solar Panel (Cat. No. 29250) to charge the portable power station
- Pass through charging to simultaneously charge KTB500 and power devices

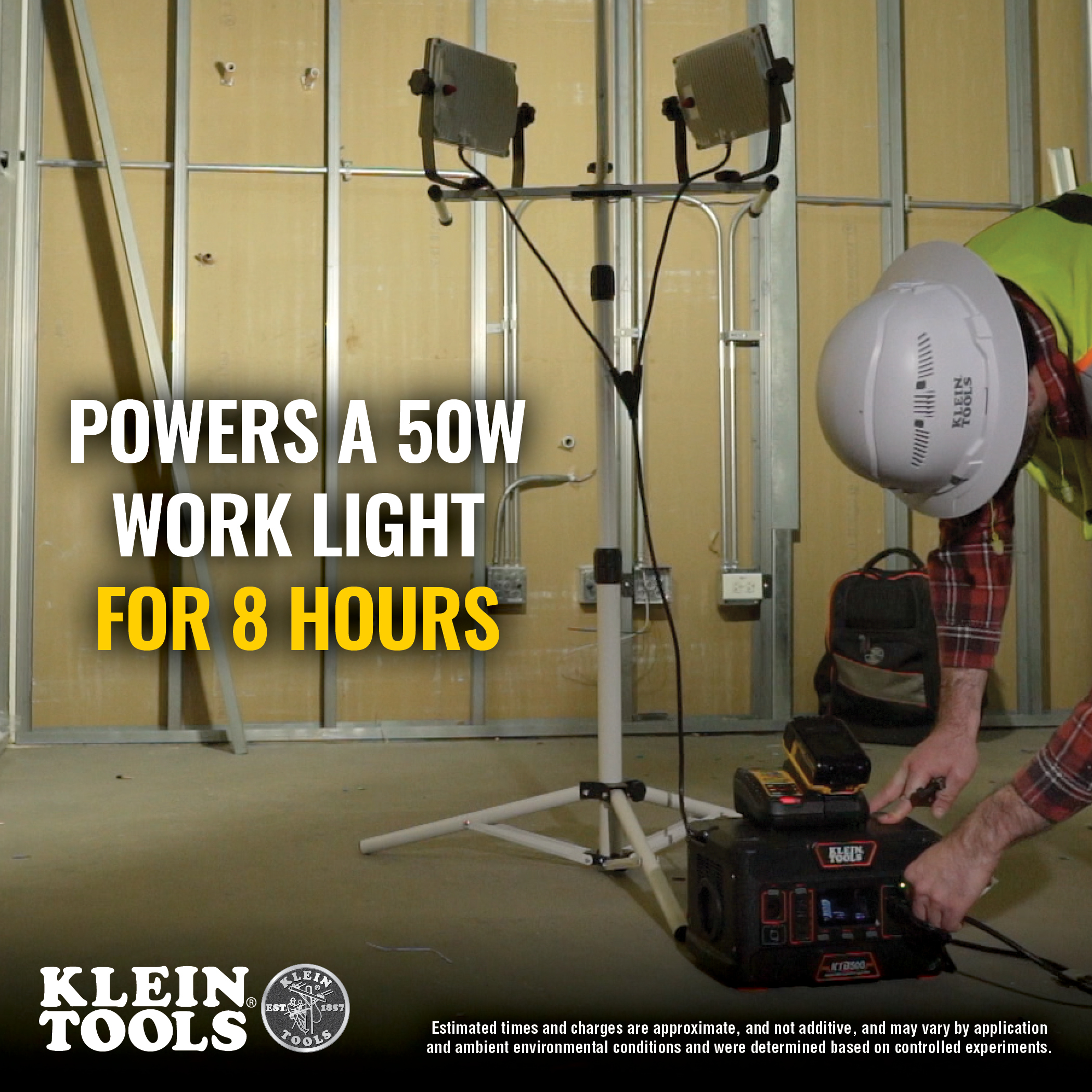

- 505Wh capacity can power a 50W, 5,000 lumen work light for a full 8-hour shift
- Compact size for convenient storage in a job box or vehicle, to power devices anywhere

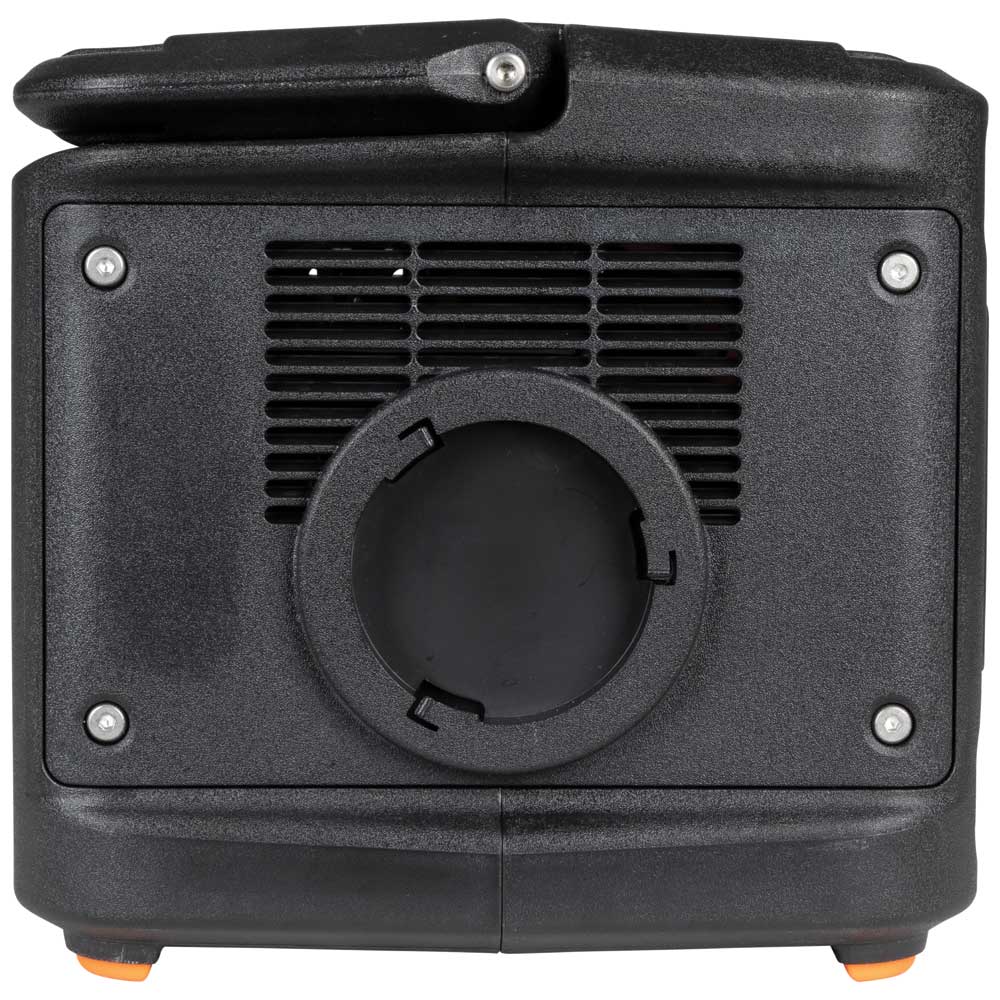

- Internal cooling fan maintains the appropriate operating temperature range
- Replacement chargers for KTB500 (Cat. Nos. 29201 - Wall Charger, 29209 - 12V Car Port Adapter, 29205 - Anderson Powerpole®-APP® to DC cable, 29202 - USB Cable) sold separately
Klein Tools' Portable Power Station has been designed with the jobsite in mind. The 505Wh lithium-ion battery provides power to devices and small rechargeable tools, to keep the job running. Its environmentally-friendly, Pure Sine-Wave power is a better alternative to loud, exhaust-emitting gas generators.
Specifications
Capacity:
505Wh
120V Power (Continuous/Surge):
500W / 1000W
Total Output:
7
120V Outlets:
2 (Pure-Sine Wave)
USB-A Ports:
2
USB-C Ports:
1
USB-C Ports (60W):
1
12V Output Port:
1
Input Port:
8 mm Round Port
Recharge Time:
7 hrs
Pass-Through Charging:
Yes
Solar Compatible:
Yes (8mm Port)
MPPT Built-In:
No
Maximum Solar Input:
105W (8mm Port)
Type:
Power Station
Application:
Provide Portable AC and DC Power
Special Features:
Lightweight and Compact Design, Rotating Carry Handle, Pass-Through Charging, Multi-Metric LCD Display
Battery Type:
Lithium-Ion
Operating Temperature:
14° to 104°F (-10° to 40°C)
Battery Life:
500 Cycles to 80% Capacity (Depending Upon Use and Care)
Included:
AC Wall Charger, 12V Auto to 8 mm Barrel Adapter
Overall Length:
11.8'' (29.9 cm)
Overall Height:
7.3'' (18.5 cm)
Overall Width:
7.5'' (19.1 cm)
Material:
Plastic (PC/ABS)
Standard:
FCC, BC, NRCAN
Weight:
13.9 lb (6.3 kg)
UPC:
092644291500
Warnings
- Do NOT use portable battery in excess of its output rating. Overloading outputs above the rating may result in a risk of fire or injury to persons
- Use of a power supply, charger or cable not recommended or sold by a portable battery manufacturer may result in a risk of fire or injury to persons
- Do NOT attempt to repair portable battery or AC wall charger. There are no user-serviceable components inside
- Do NOT expose portable battery to moisture, rain, or snow.
- See instruction manual for additional warnings.
