Chicago Grip, 19 to 25 mm High Strength Cables
1628-18
- Used for Aircraft, EHS, Messenger, Guy Strand cables
- Designed for 0.75'' to 1.0'' (19.05 to 25.4 mm) diameter cable sizes with a maximum safe load of 15,000 lbs (6803 kg)
- For larger conductors, see our grips with round inside-jaw contours
- Double 'V' grooves give four-point contact, reducing the chance of slipping and providing proper alignment of the wire and cable
- Made in the USA
- Locking handle keeps jaw open while the grip is placed on the cable with a hot stick
Videos
Images
High-Res JPG

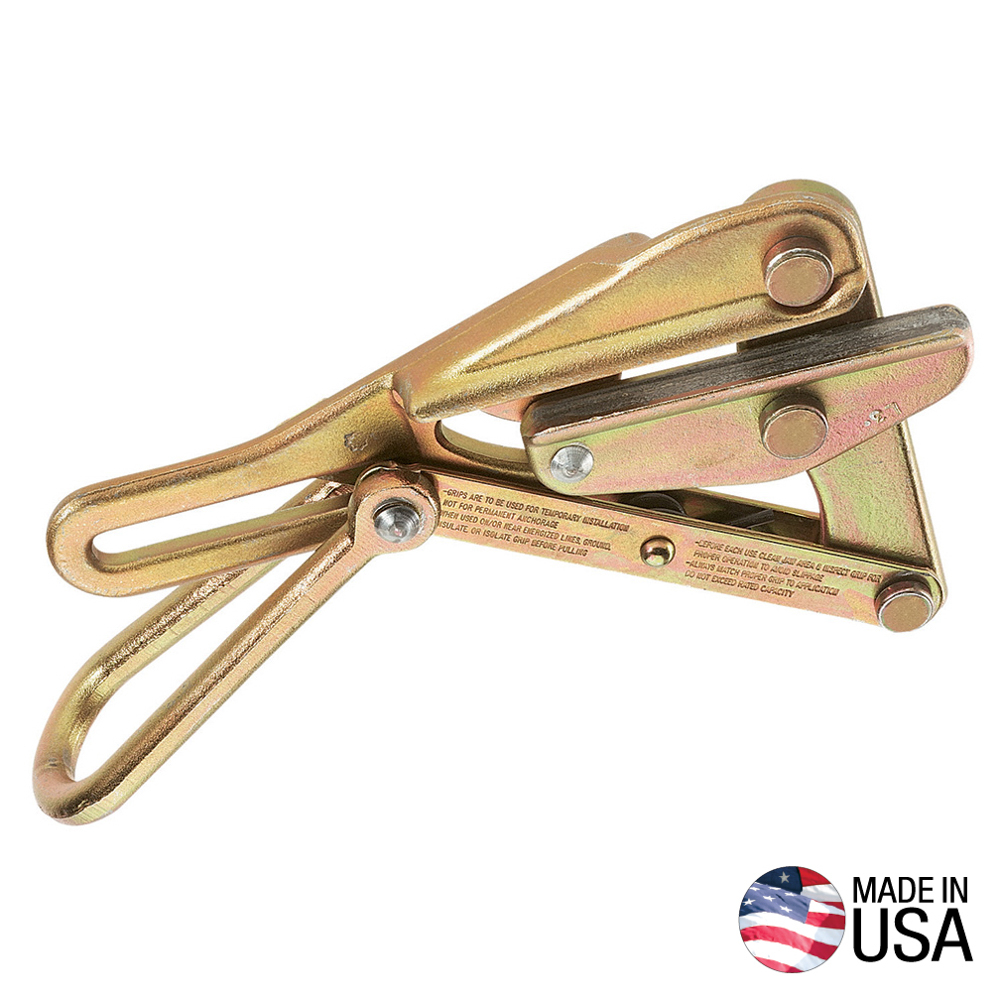

The Klein Tools 1628-18 Chicago Grip is designed for EHS, Messenger and Guy Strand cable. The double V grooves provide four-point contact, which reduces chances of slipping and also provides proper alignment of wire and cable. All Klein grips are manufactured from custom drop-forged steel that is machined and heat treated for excellent durability. Each grip is individually hand inspected and actuated for proper function. Grips are also rigorously tested and pulled to rated load to ensure the highest quality and reliability.
Specifications
Type:
Chicago Grip
Application:
Extra-high-strength cables, messenger, guy strand
Cable Type:
Aircraft, EHS, Messenger, Guy Strand
Cable Diameter:
0.75'' to 1'' (19.05 to 25.4 mm)
Hot Latch:
N
Swing Latch:
N
Spring:
N
Locking Handle:
Y
Jaw Type:
Double V
Jaw Length:
7.25'' (18.4 cm)
Maximum Safe Load:
15,000 lb (6803 kg)
Weight:
14.1 lb (6.4 kg)
UPC:
092644470356
Additional Information
Warnings
- Before each use, clean jaw area and inspect grip for proper operation to avoid slippage.
- When used on/near live lines, ground, insulate or isolate grip before pulling.
- Do not exceed rated capacity.
- Always match proper size and type of grip to application.
- Grips are to be used for temporary installation, not for permanent anchorage.
